Basic Specifications
Electric Current
DC Shock Wave
Welding Spot Number
Single
Production Name
Ultrasonic Metal Welding Machine
Welding Time
Less Than 1 S
■
Product Overview

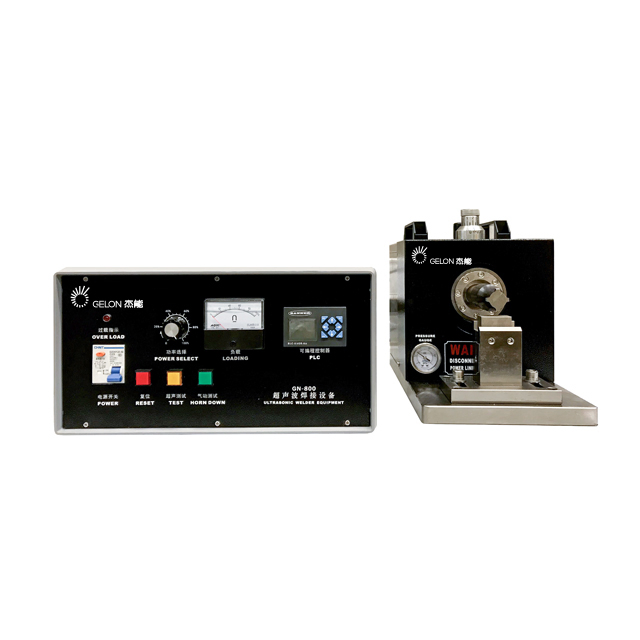

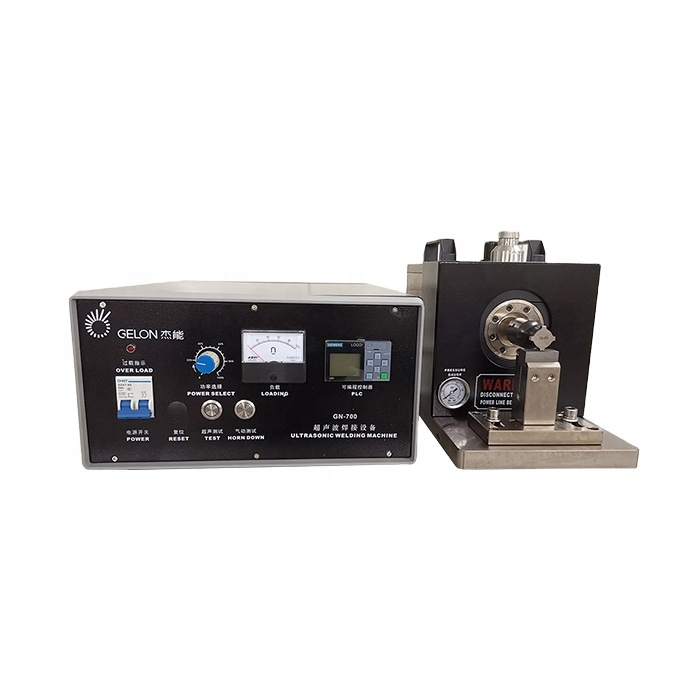

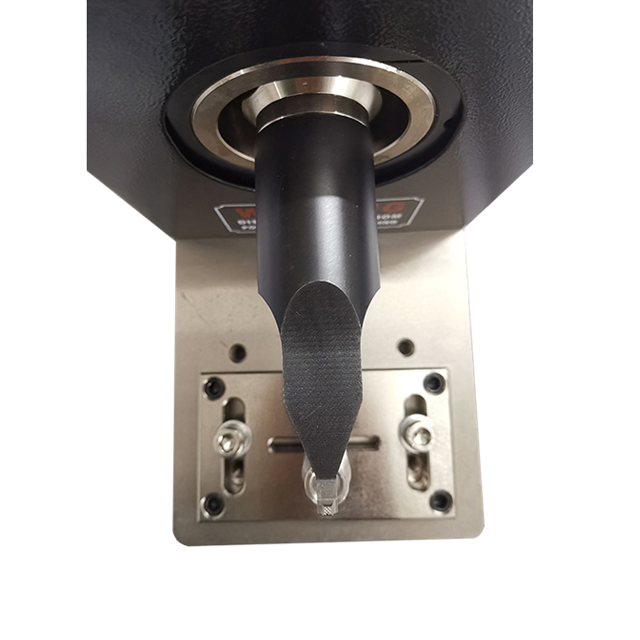

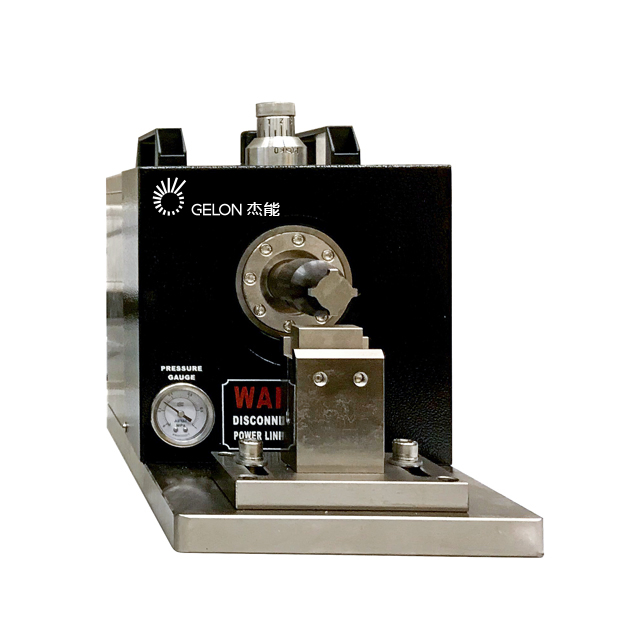

Desk-top Ultrasonic Metal Welding Machine for Lithium Battery Cell Production
The high-power intelligent ultrasonic metal spot welding machine is specially designed for the welding of single & multilayer aluminum foil and copper foil, as well as the welding of multi-tabs batteries in parallel series. It adopts intelligent control mode, covering modes such as time, energy, power, energy and depth.
| Frequency |
25KHZ ± 10% |
| Air Supply |
Pressure 0.4-0.6Mpa, humidity less than 48%, high temperature not exceed 45ºC |

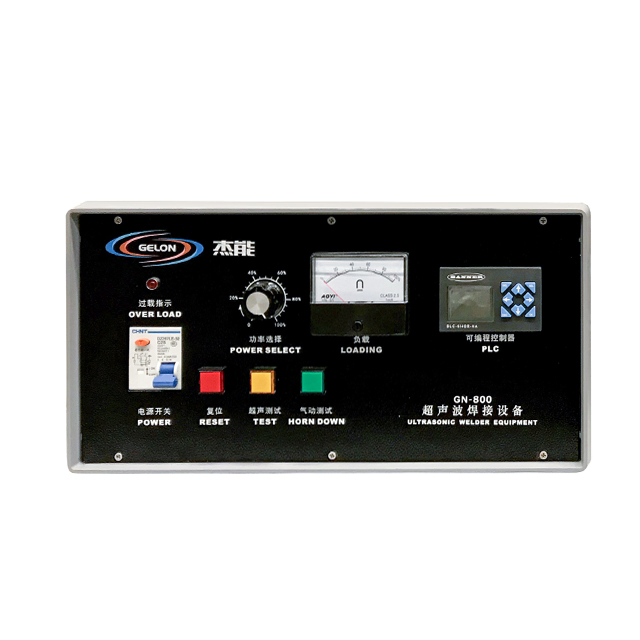

| Control Way |
CPU Intelligent Control |
| Working Stroke |
15mm |
■

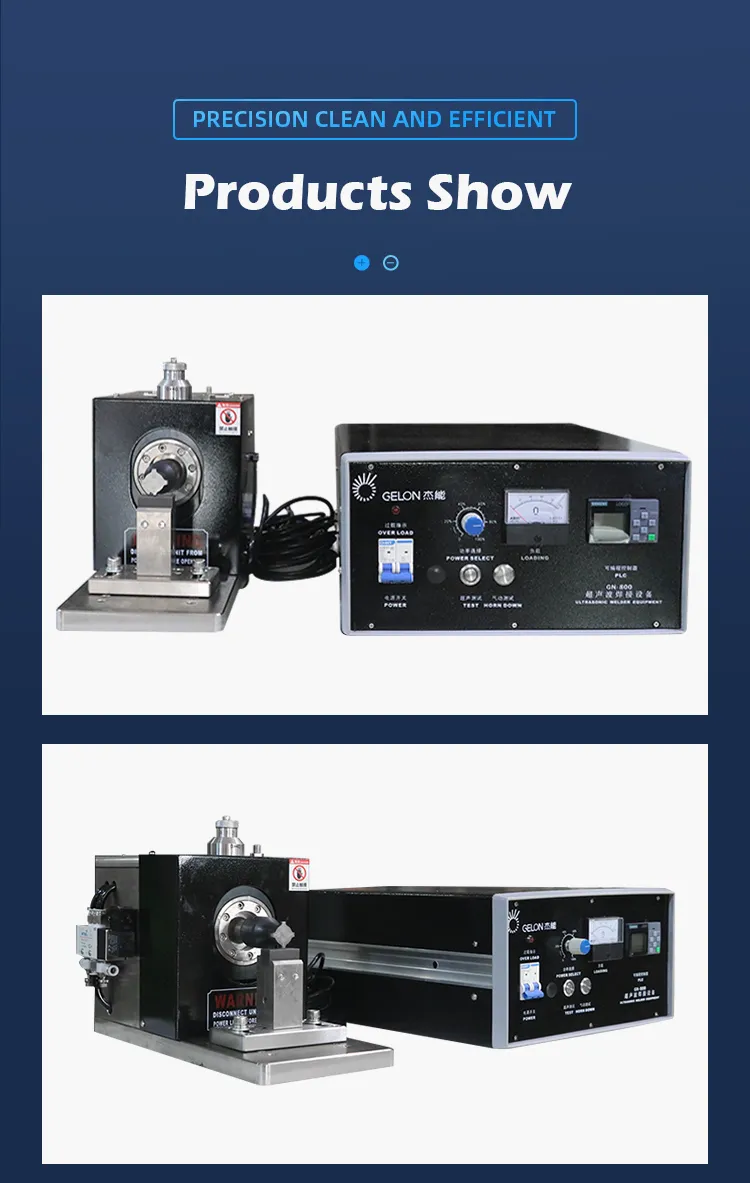

Product Visuals
■
Frequently Asked Questions
What materials can this machine weld?

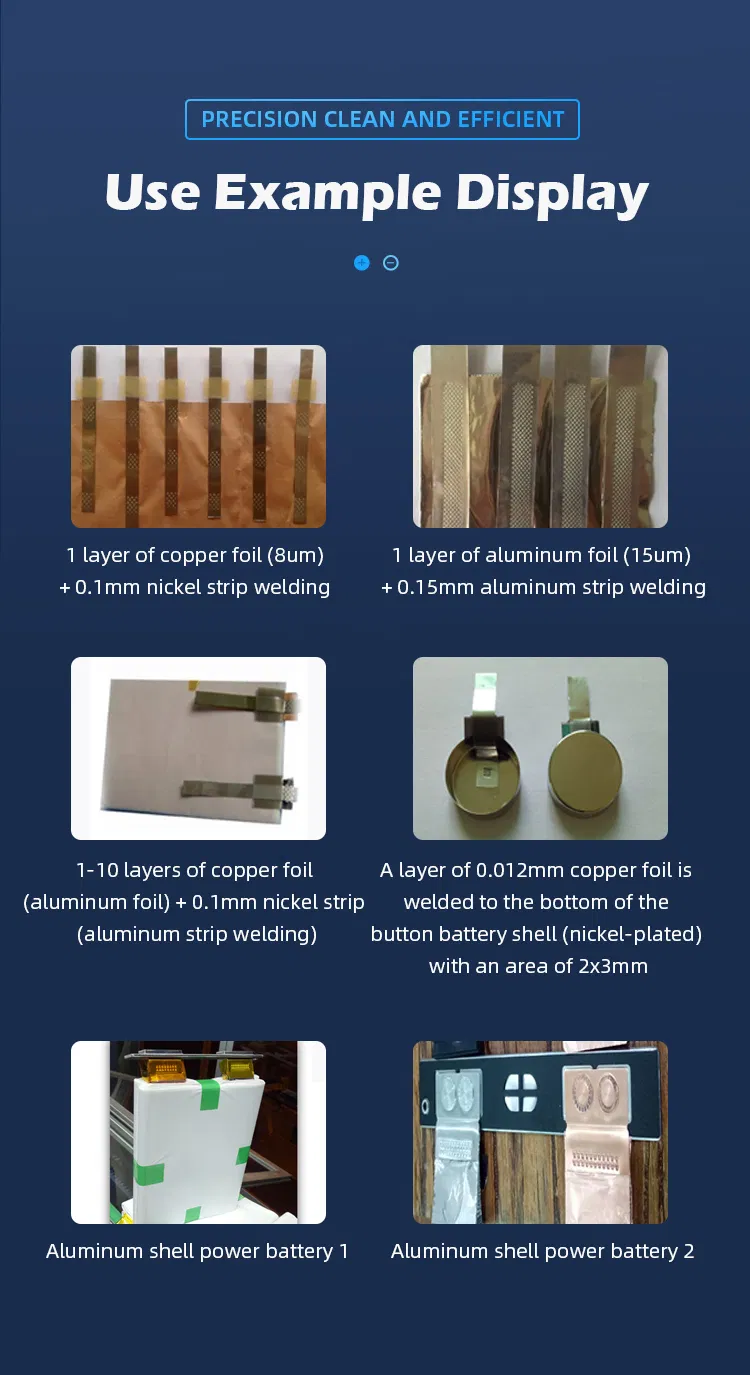

It is specifically designed for single and multi-layer aluminum foil and copper foil welding, as well as battery pack tabs.
What are the available control modes?
The machine uses CPU intelligent control, supporting time, energy, power, and depth welding modes.
How fast is the welding process?
The welding time is extremely efficient, typically taking less than 1 second per spot.
What air supply is required for operation?
A pressure of 0.4-0.6Mpa is required, with humidity below 48% for optimal performance.
Is it suitable for industrial production lines?
Yes, with a production capacity of 100 sets per month and high precision, it is ideal for battery cell production environments.
What is the welding frequency?
The machine operates at a frequency of approximately 25kHz ± 10%.
