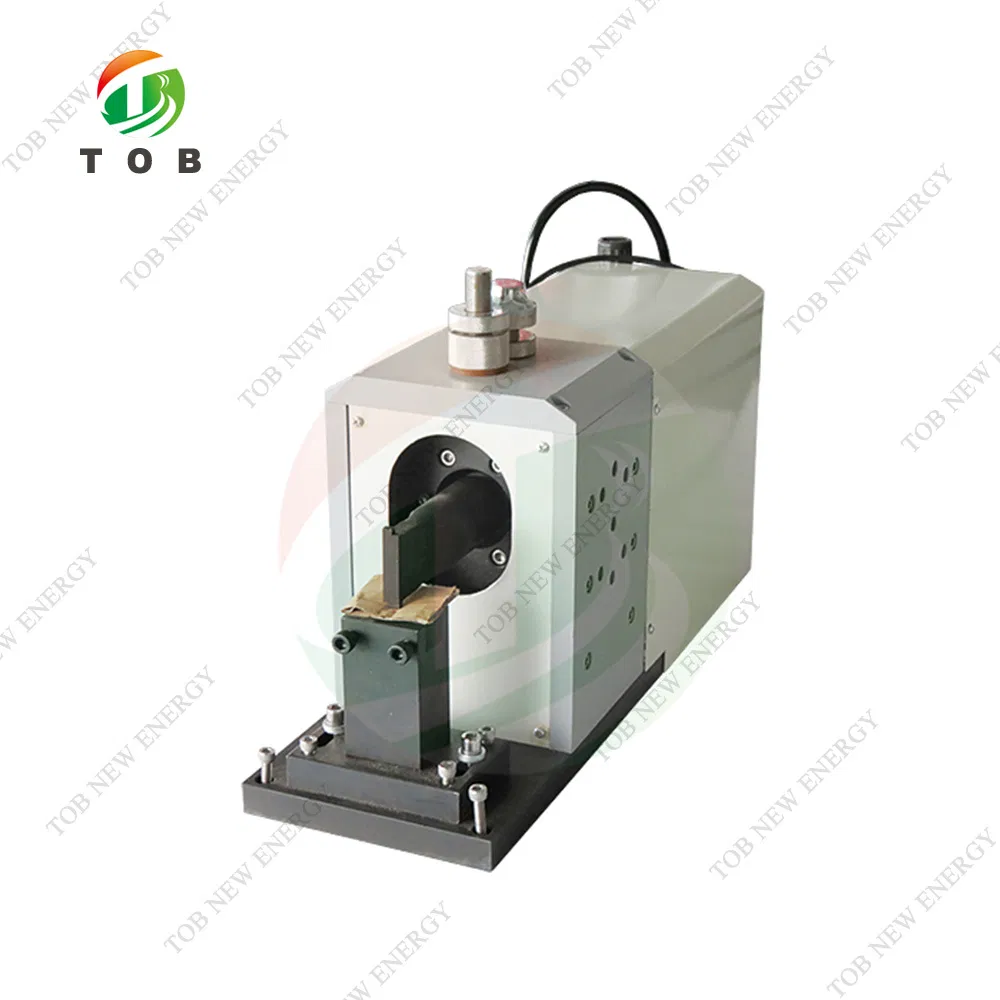

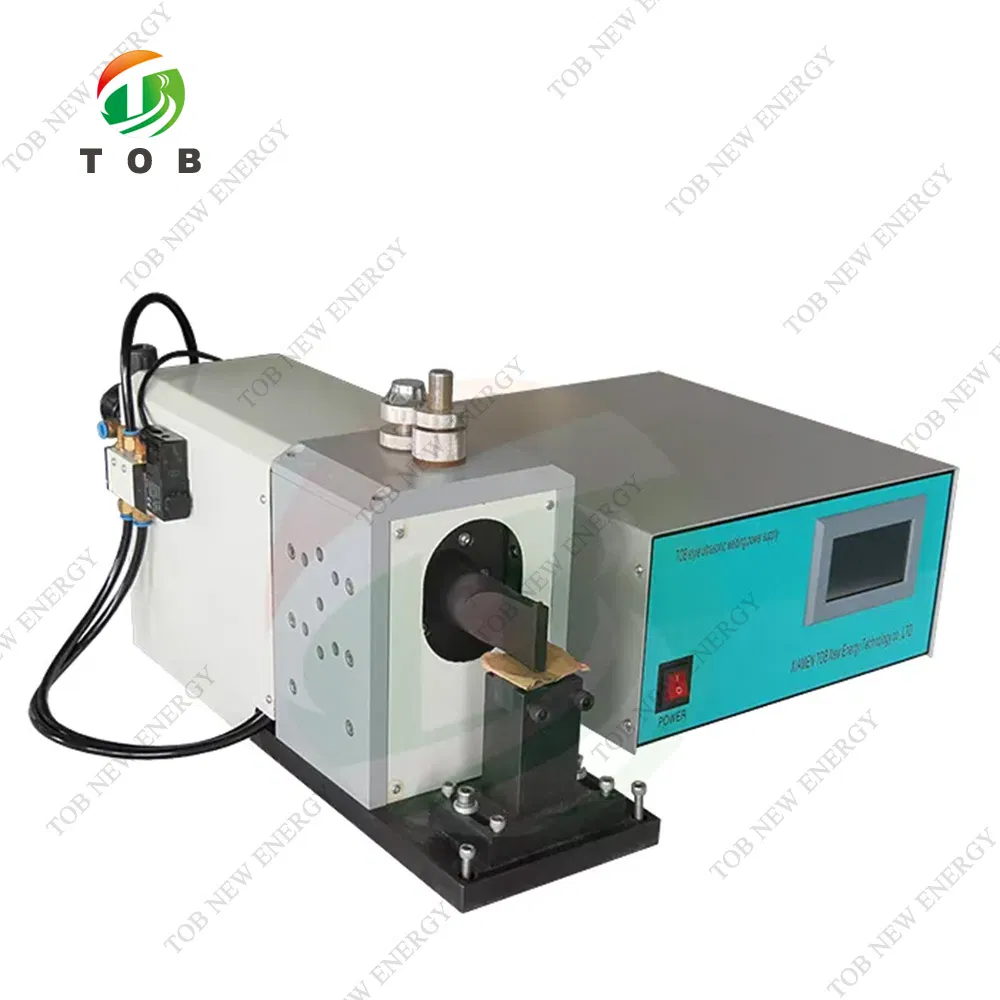

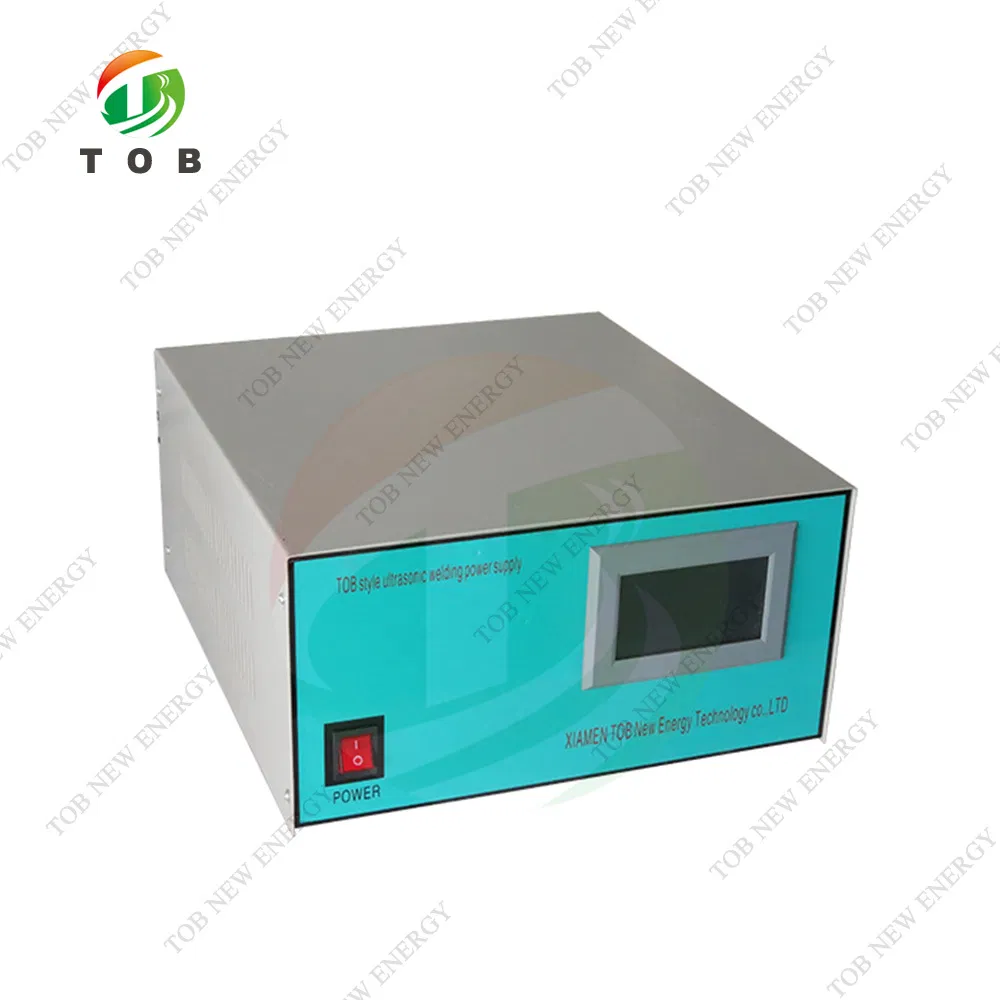

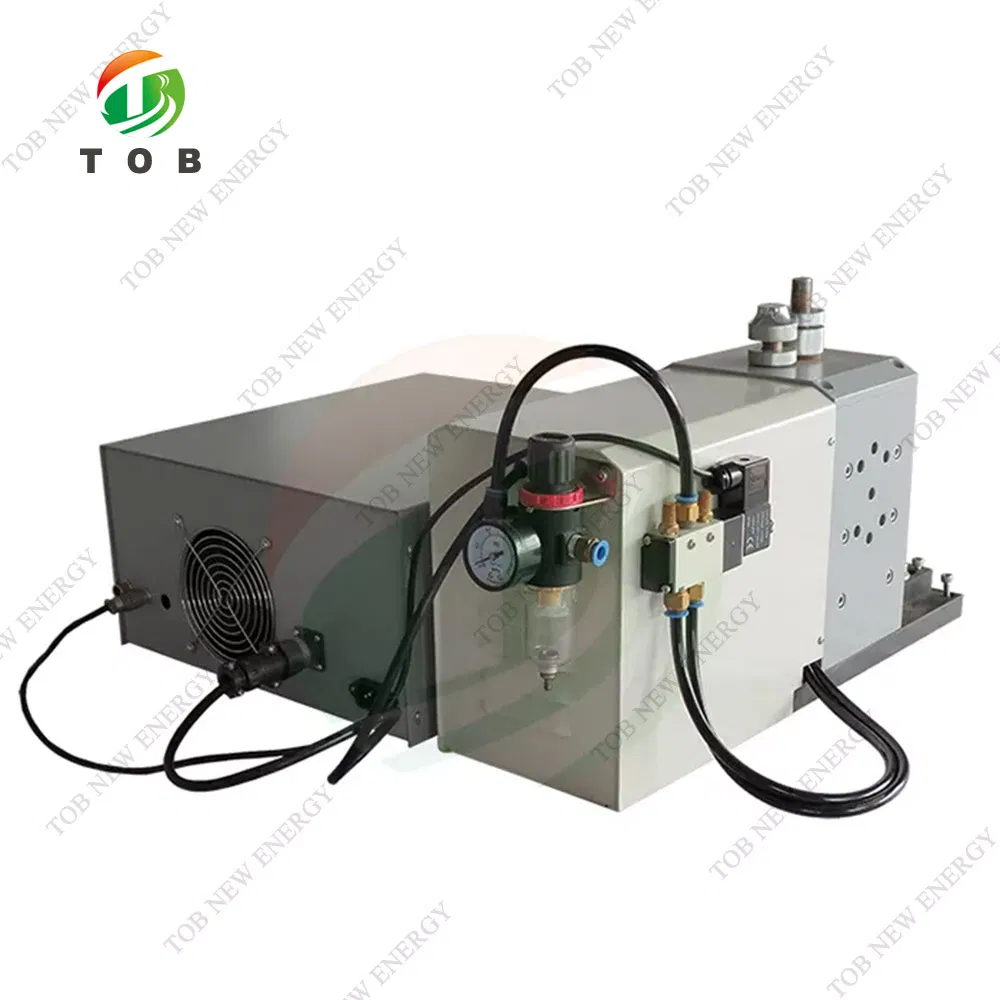

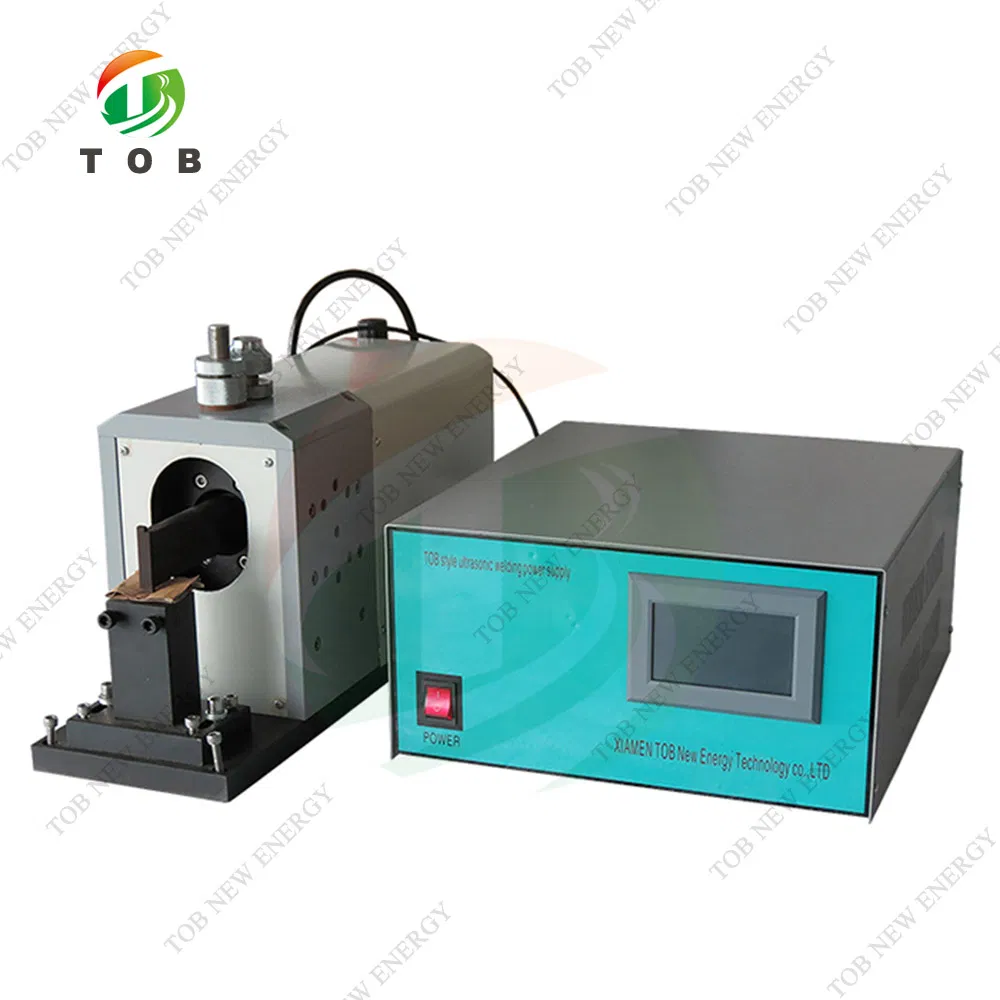

1. The USW3000W ultrasonic metal welding machine is specifically designed for Lithium battery tab welding, featuring a high-precision touch-screen controller. It is the ideal solution for welding stacked electrode sheets (Copper & Aluminum) and tabs onto current collectors, widely used in both R&D laboratories and full-scale production lines for Li-ion pouch cells.
2. This 2600W/3000W Battery Welding Machine is capable of welding stacked electrodes with 10-30 layers of aluminum or copper foil with Al and Nickel tabs. For larger batteries requiring up to 30 layers, the USW-3000W model is recommended, while the USW-4500W model is available for requirements reaching up to 60 layers.
| Model | Battery Welding Machine USW-3000W |
| Type | Ultrasonic spot welding machine |
| Welding Ability 1 | 10-30 sheets 0.09-0.012mm copper foil + 0.1-0.3mm Ni or Nickel-clad copper tab welding. (Customized points: 4*6, 4*8, 4*10, 4*12 mm) |
| Welding Ability 2 | 10-30 sheets 0.09-0.012mm aluminum foil + 0.1-0.3mm Al tab welding. (Customized points: 4*6, 4*8, 4*10, 4*12 mm) |
| Welding Ability 3 | 0.2mm Al belt + 0.2mm Ni belt or Nickel-clad copper wrapping welding. |
| Frequency | 24KHZ |
| Max Output Power | 3000W |
| Control Mode | CPU Control |
| Air Supply | ≥0.5MPa |
| Voltage Source | 110/220V 50HZ/60HZ |
| Environmental Limits | Humidity ≤48%, Temperature ≤45ºC |
| Warranty | One year limited warranty with lifetime support |
