Product Description

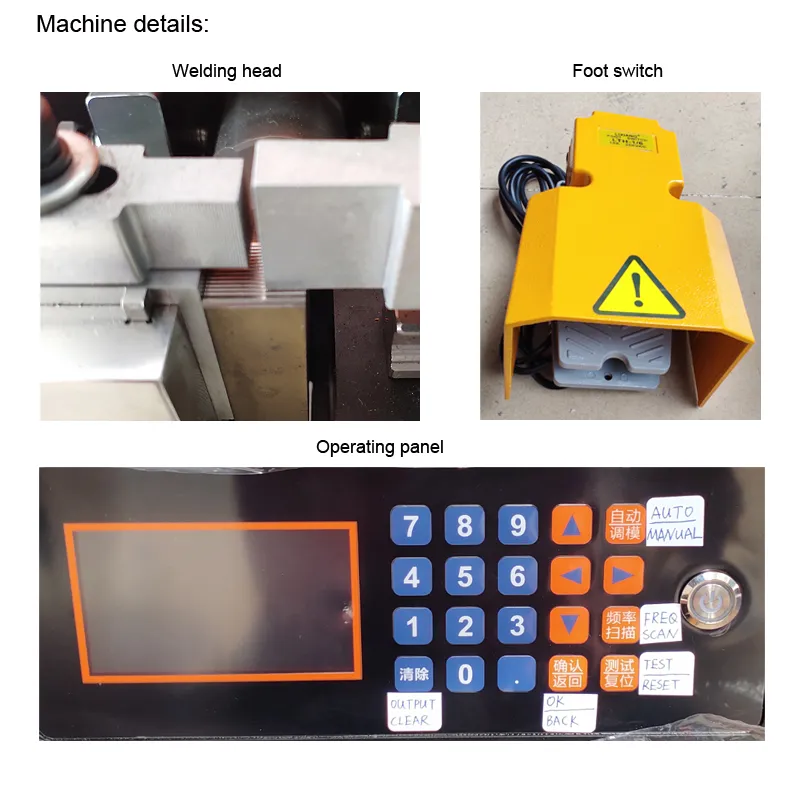

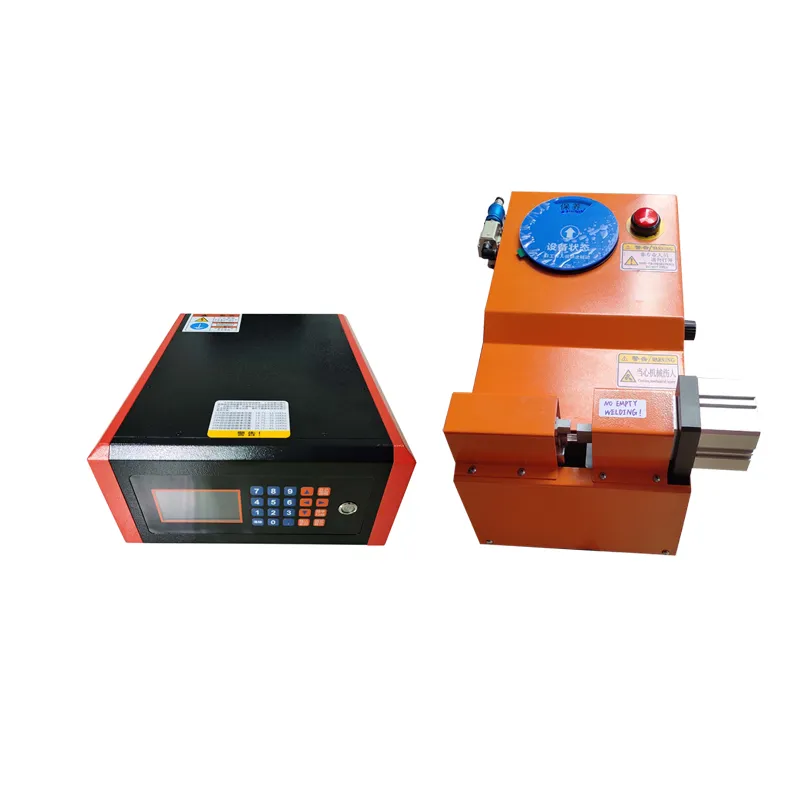

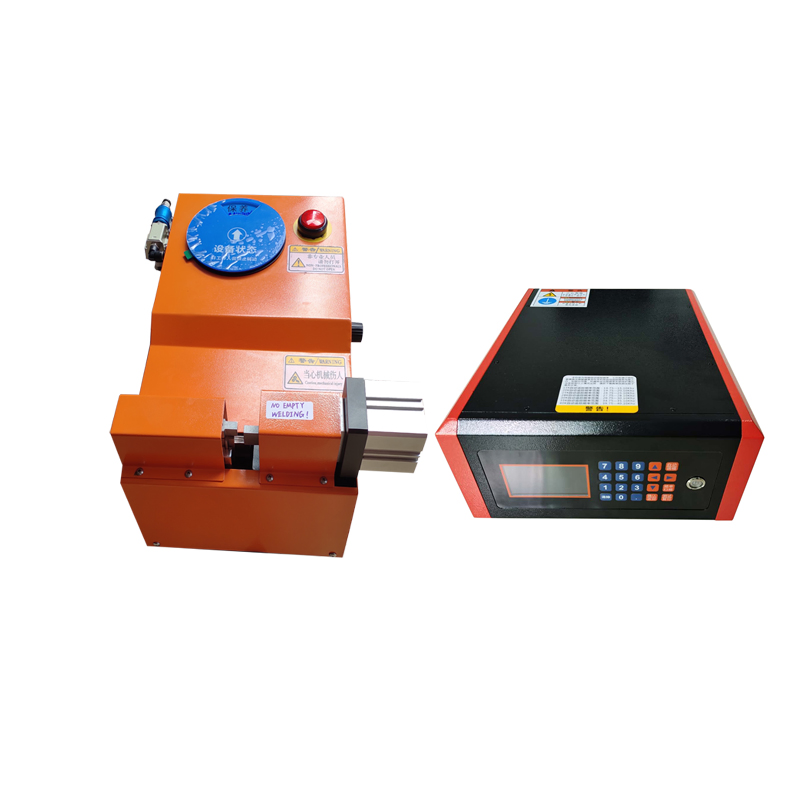

4000W 5000W High-Performance Ultrasonic Welding Machine
This professional ultrasonic welding machine is specifically designed for wire harness splicing and termination, offering a reliable and efficient solution for metal spot welding applications.
Technical Parameters
| Parameters Name |
Data Details |
| OUTPUT POWER | 2000W / 3000W / 4000W / 5000W / 6000W |
| FREQUENCY | 20K Hz |
| INPUT VOLTAGE | 220V |
| HORN JOURNEY | 30MM |
| CONTROL METHOD | MCU |
| OSCILLATION TIME | 0.2 ~ 9S |
| AIR PRESSURE | 0.5KG |
| WELDING AREA | 0.7mm² - 12mm² |
| ELECTRIC BOX SIZE | 380 * 350 * 150MM |
| MACHINE SIZE | 460 * 270 * 150MM |
| NET WEIGHT | 38KG |
| WARRANTY | 1 Year |
Key Features
✔
High Stability: Features an all-digital integrated circuit with a high-performance anti-jamming processor and voltage stabilization for maximum system reliability.
✔
Automatic Frequency Tracking: Digital frequency synthesis technology eliminates drift caused by temperature, tool wear, or load changes.
✔
Powerful Output: Utilizes IGBT power modules and other-excited oscillating circuits, providing 1.5x the power of traditional circuits.
✔
Stepless Amplitude Adjustment: Range from 10% to 100%, allowing for precise welding of both large and small parts without scalding.
✔
Intelligent Protection: Built-in fault alarms for high current, frequency offset, and output overload to protect the equipment.
✔
Multiple Welding Modes: Switchable modes to ensure higher accuracy and a wider application range for various metal materials.

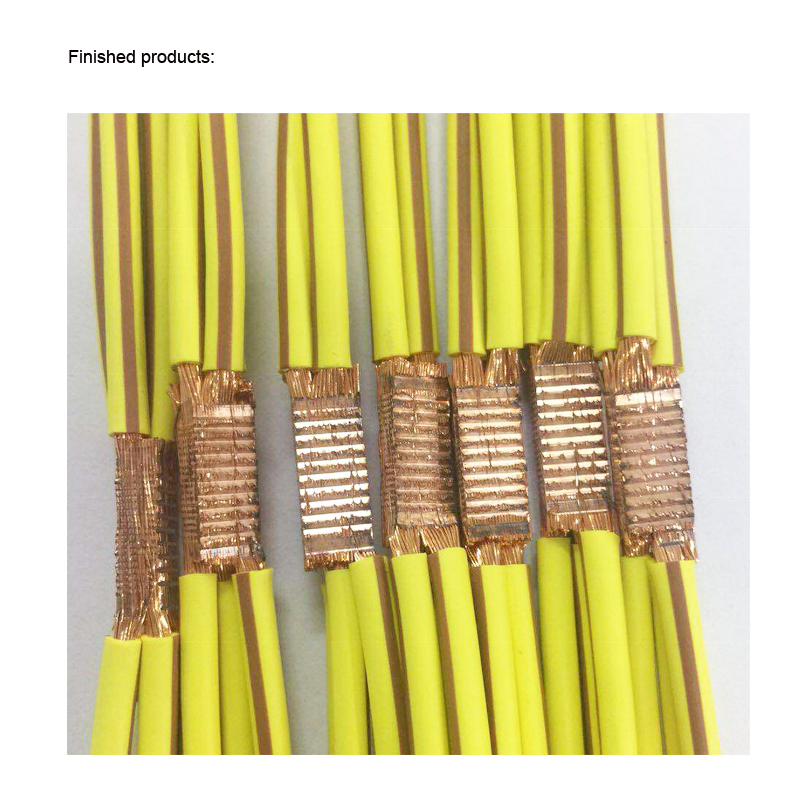

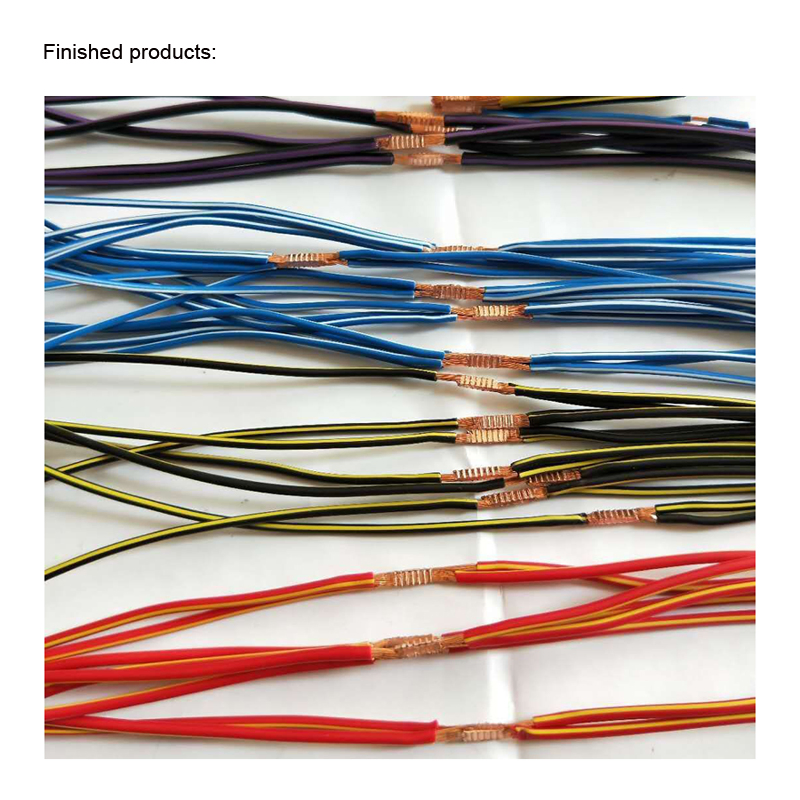

Application & Samples
Frequently Asked Questions
What materials can this machine weld?
It is primarily designed for non-ferrous metal welding, specifically copper and aluminum wire harness splicing and termination.
How does the automatic frequency tracking benefit the user?
It automatically compensates for changes in temperature and tool wear, ensuring consistent welding quality without manual adjustment.
What is the range of the welding area?
The machine supports a welding area ranging from 0.7mm² to 12mm², making it versatile for different wire sizes.
Is the amplitude adjustable during operation?
Yes, it features stepless amplitude adjustment from 10% to 100%, which can be fine-tuned to prevent damage to delicate parts.
What kind of protection does the intelligent system provide?
The system includes protection against excessive mold current, frequency offset, and output overload, with immediate fault alarm prompts.
What is included in the warranty?
The machine comes with a 1-year warranty covering the main components and technical support for troubleshooting.
