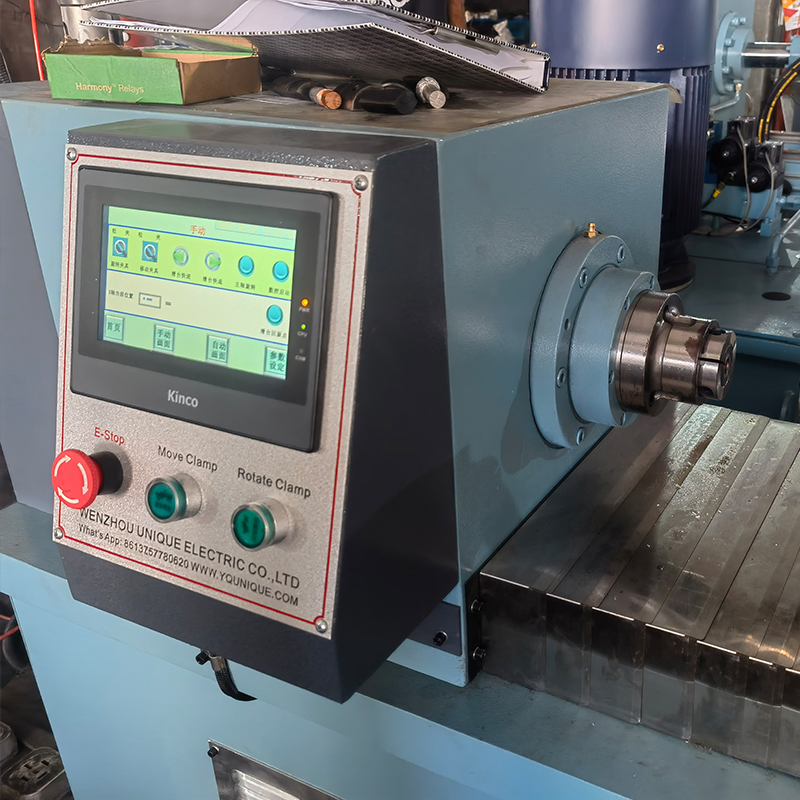

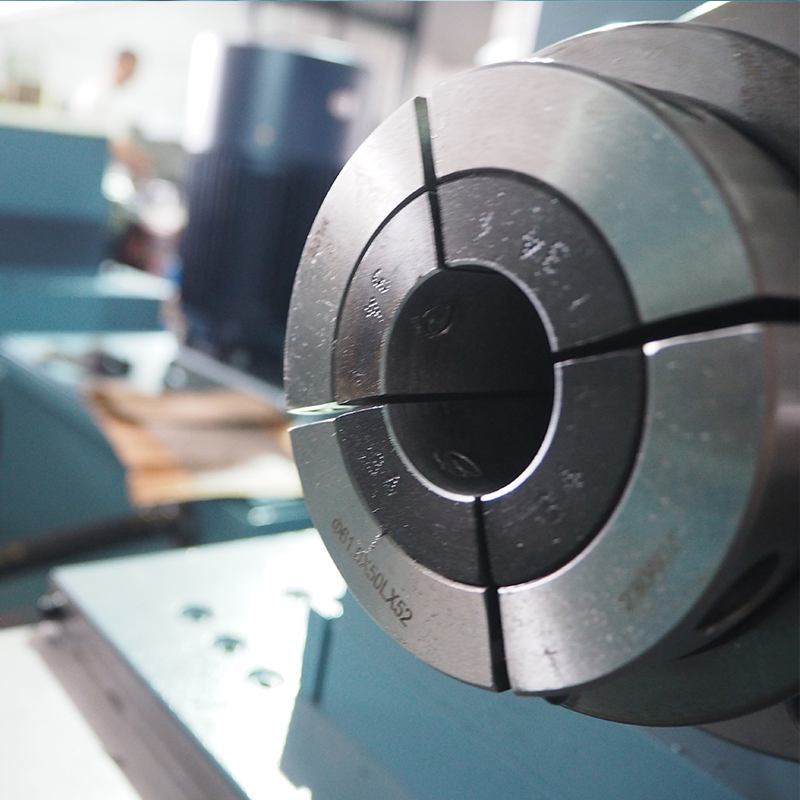

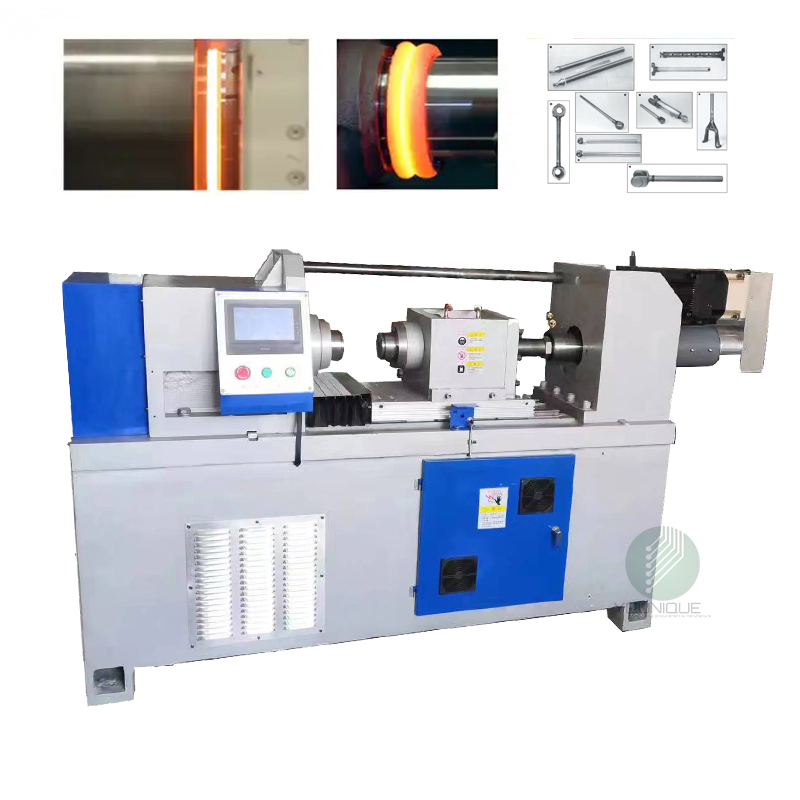

Automatic Horizontal Pump Shaft Rotary Friction Welding Machine
Automatic Horizontal Pump Shaft Rotary Friction Welding Machine
Automatic Horizontal Pump Shaft Rotary Friction Welding Machine
Automatic Horizontal Pump Shaft Rotary Friction Welding Machine
Automatic Horizontal Pump Shaft Rotary Friction Welding Machine
1 / 5
Automatic Horizontal Pump Shaft Rotary Friction Welding Machine
Automatic Horizontal Pump Shaft Rotary Friction Welding Machine
Automatic Horizontal Pump Shaft Rotary Friction Welding Machine
Automatic Horizontal Pump Shaft Rotary Friction Welding Machine
Automatic Horizontal Pump Shaft Rotary Friction Welding Machine

Automatic Horizontal Pump Shaft Rotary Friction Welding Machine

Customization: Available
Cooling Way: Air Cooling
Control: Automatic
Send Inquiry

Product Description

Basic Specifications
Model NO.
YE-C20
Style
Horizontal Type
Frequency Range
High Frequency
Electric Current
AC
Type
Inertia Friction Welder
Control Type
PLC Control
Touch Screen
Color LCD Touch Screen
Forging Force
200kN
Spindle Speed
3000 Rpm
Slide Table Travel
300mm
Production Capacity
1000 Set/Year
HS Code
851531990
Servo CNC Advantages
✓Stable operation, not affected by oil temperature.
✓High precision joint acquisition.
✓Angle control for phase alignment products.
✓Lower CO2 emissions compared to oil pressure systems.
✓Enhanced energy saving and noise reduction.
✓No oil leakage or waste oil, protecting the environment.
✓Thrust feedback control for smooth drive at low speeds.
Machine Structure & Components

1. Machine Base: High strength steel plate with annealing treatment for durability and welding accuracy.

2. Spindle: Unique design to withstand high-speed rotation and high thrust; cast iron body for stability.

3. Sliding Table: Heavy linear guide rails to minimize sliding resistance.

4. Drive System: Servo motor driven with strong belt transmission; speed set via frequency conversion.

5. Detection: High-precision magnetic scale (electronic ruler) for maintenance-free numerical input.

6. Control System: Omron PLC controller ensures stability and precision in every weld.

Technical Data Sheet
Model Max Forging Force (kN) Max Spindle Speed (RPM) Weld Diameter (mm) Rotary Fixture Length (mm) Move Fixture Length (mm) Gross Power (kW) Weight (Tons)
YE-C2.5S255000φ5-φ1225-26050-450102
YE-C5S504000Φ8-φ2025-26050-450152.5
YE-C10S1003500Φ10-φ2625-26050-450254
YE-C20S2003000Φ12-φ4025-260100-500386.5
YE-C32S3202000Φ18-φ5030-260100-500667
YE-C60S6001500Φ30-φ6530-260100-500908.5
Product & Application Gallery

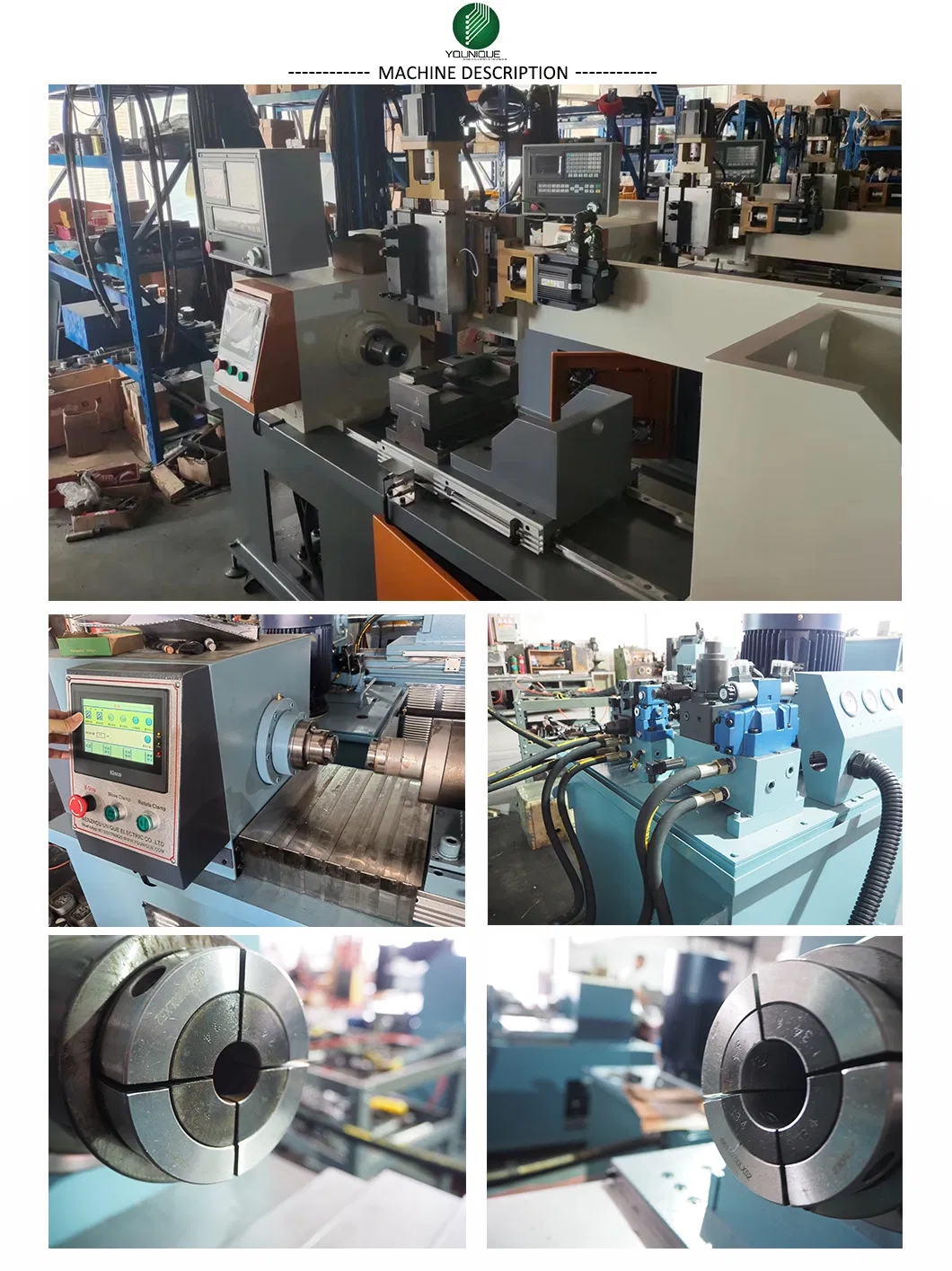

Friction Welding Machine

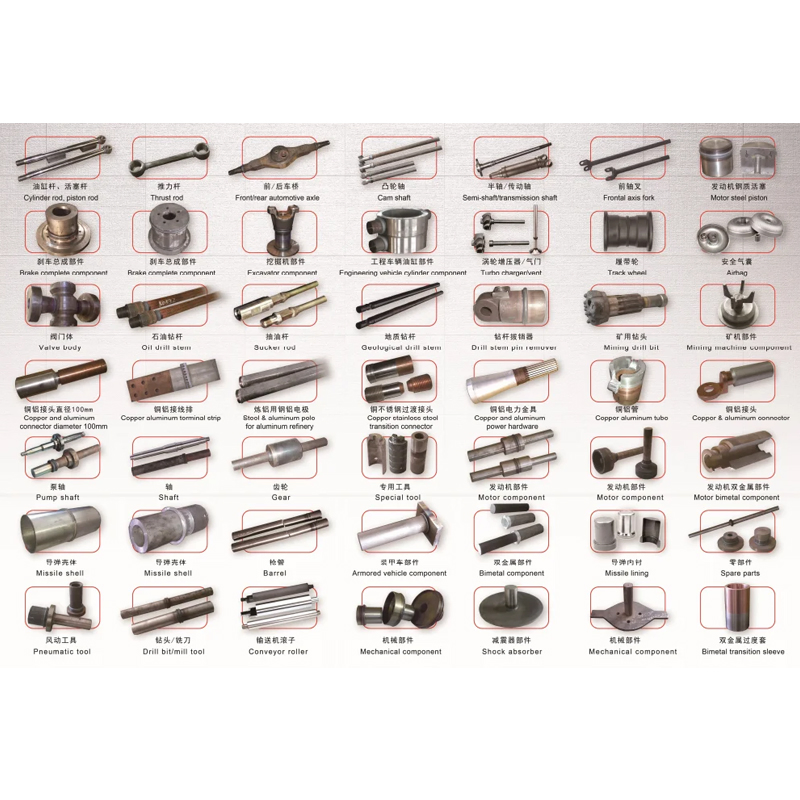

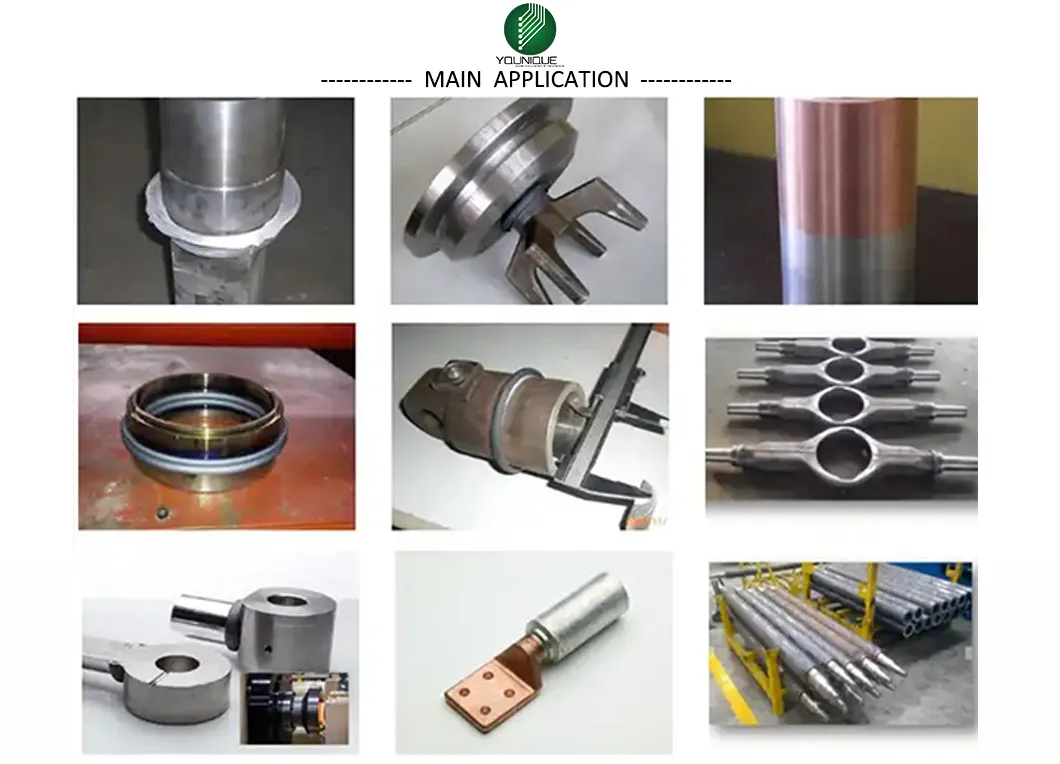

Main Application

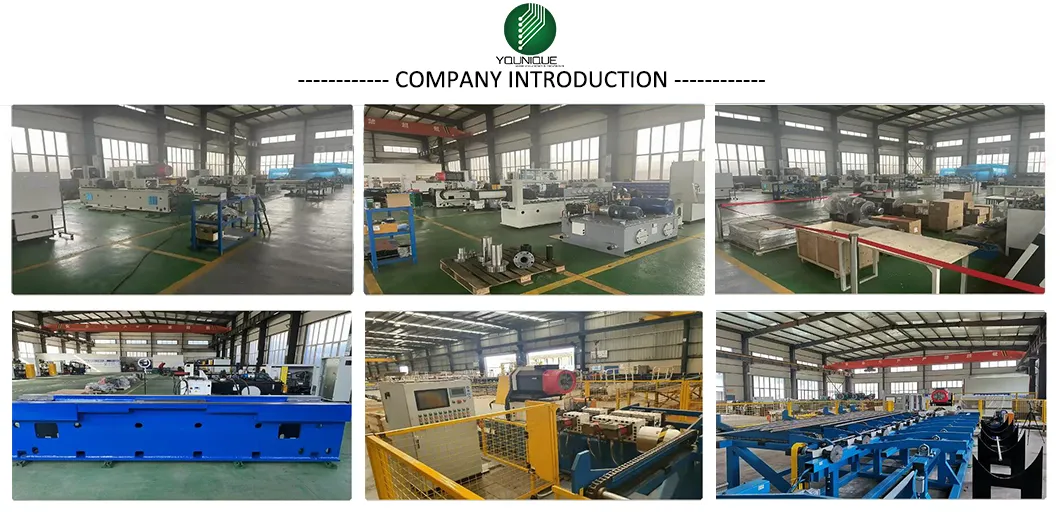

Production Line
Certifications
Packaging and Shipping
Frequently Asked Questions
Are you a professional manufacturer or a trading company?
We are a professional manufacturer engaged in the development, research, and production of friction welding machines with strong design and manufacturing capabilities.
What is the typical delivery time for the equipment?
Generally, it is 35 days if the equipment is in stock. If out of stock, it takes 2-3 months depending on the quantity and specific type of equipment.
What materials can be welded using your friction welding machines?
Our machines are ideal for medium carbon steel, alloy steel, and various dissimilar metal combinations, providing high-strength joints.
What are your standard terms of payment?
Our standard terms are 50% T/T in advance, with the remaining balance due before shipment.
Can the machine be customized for specific workpiece lengths?
Yes, we specialize in custom machines. Clamping lengths and slide table travel can be adjusted based on your specific production requirements.
Is it possible to visit the factory for equipment testing?
Yes, you are welcome to visit our factory to inspect the equipment and observe testing procedures firsthand.
