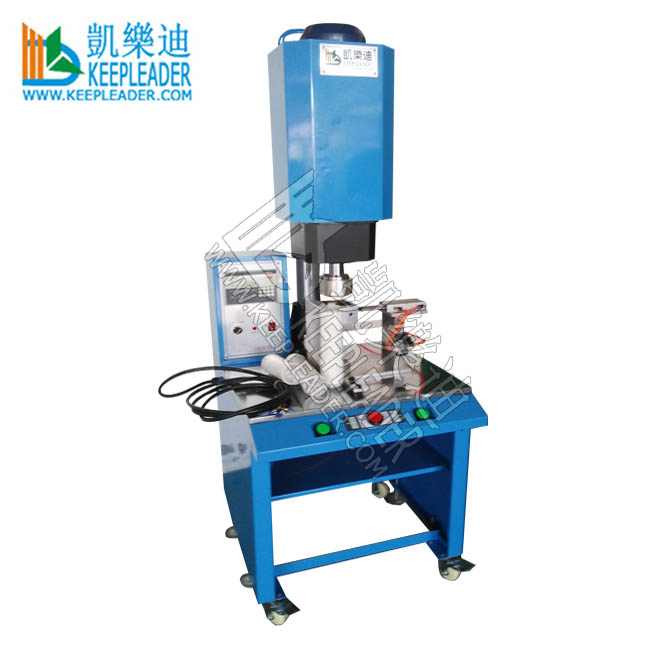

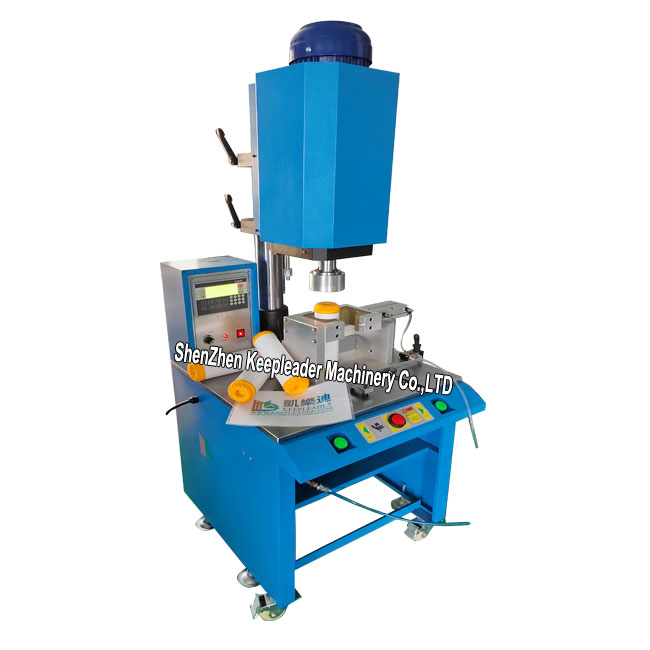

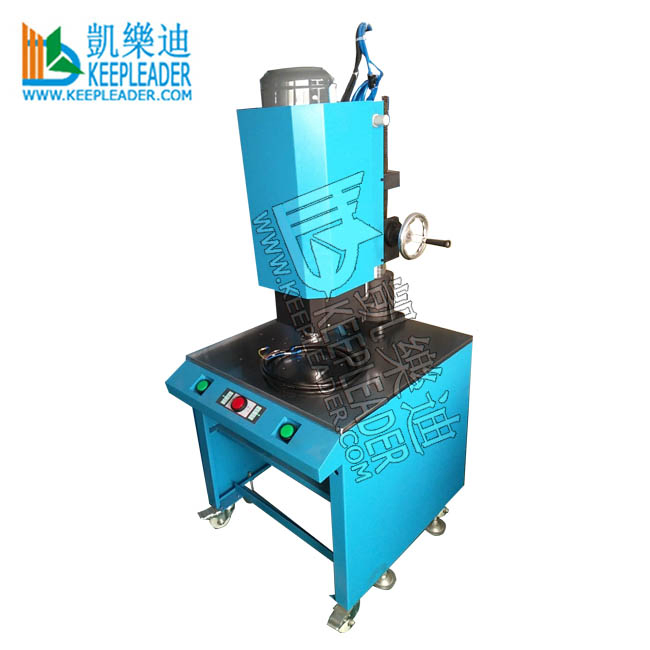

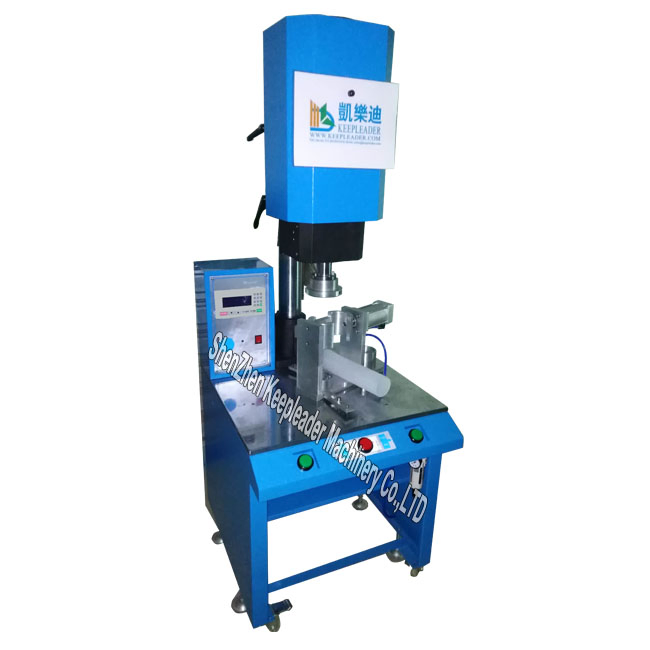

Circular Plastic Welders Plastic Spin Welding Machine of Round Thermoplastic PP Filter Joint Rotary_Frictional Sealing Equipment

Customization: Available
Application: Household Appliances, Garden Supplies, Commodity, Auto Part, Stationery, Toy
Cooling Way: Air Cooling

Product Description

Basic Information

Model NO.
Circular Plastic Welders Plastic Spin Welding
Control
Semi-Automatic
Frequency
High Frequency
Electric Current
DC
Style
Vertical
Power
Pneumatic
Specification
Plastic Spin Welding Machine
Capacity
500p/Y

Product Description

Circular Plastic Welders Plastic Spin Welding Machine of Round Thermoplastic PP Filter Joint Rotary Frictional Sealing Equipment. It uses frictional heat to melt the joint between two component plastic parts, making it perfect for round parts requiring a hermetic or watertight seal.

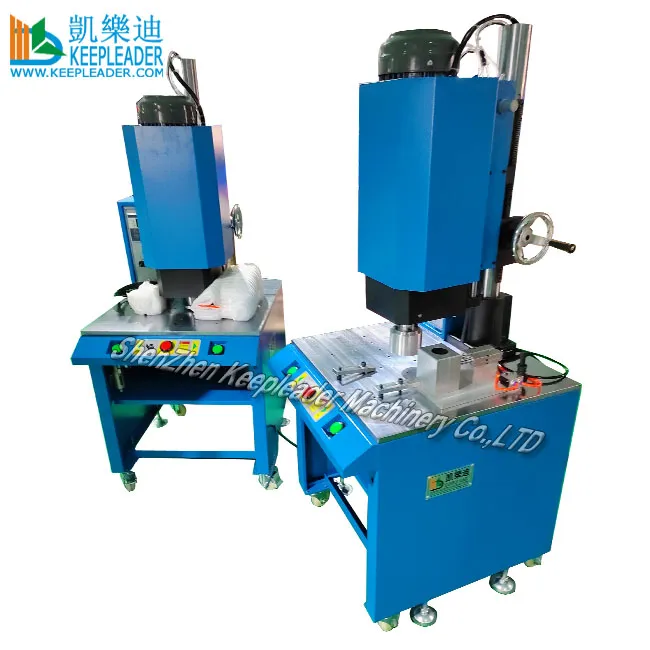

Circular Plastic Welders
Core Applications:
Water filters, Oil filters, Mugs, Thermo Cups, PP pipes/tubes, Barrels, and other circular or spherical shaped thermoplastic parts.
NameCircular Plastic Welders Plastic Spin Welding Machine
ModelKLP-3P
Power3KW
Voltage380V/50HZ*3P
Efficiency10~15pcs/min
Welding time0~30s
Air pressure3~6kgs
Welding diameter200mm
Overall size750*670*1780mm
Spin Welding Machine Process

Industry Application

These machines are utilized in automotive, appliance, medical, and plumbing industries. In the automotive sector, it assembles tanks, bottles, valves, and filters. For medical devices, it provides a solution for parts where flash control and internal cleanliness are critical. It can join various thermoplastics including ABS, PVC, polypropylene, polyethylene, and glass-filled nylon.

Advantages: High reproducibility, ability to weld large parts, high weld quality, and suitable for oxidizing polymers.
Joint Design: Shear joints are recommended for optimal strength. Scarf joints can be used for parts with minor warpage.

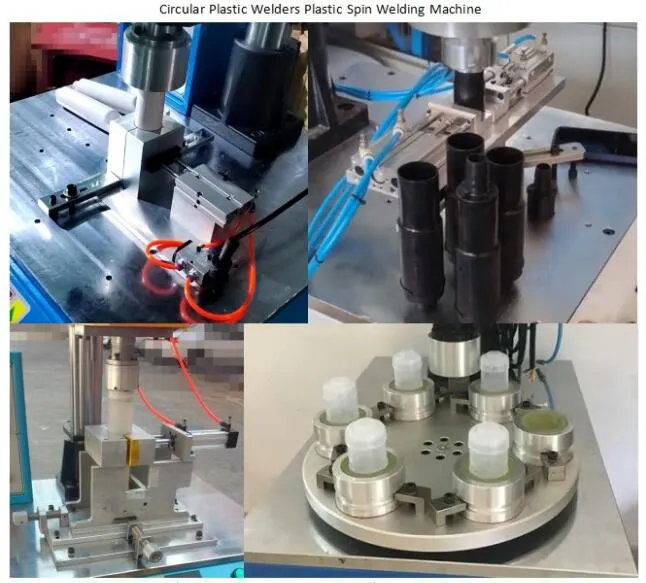

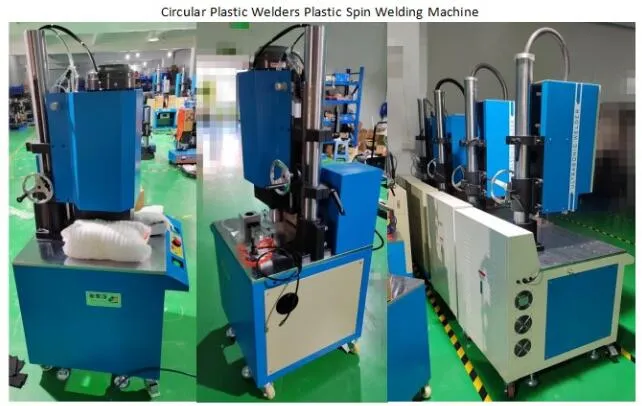

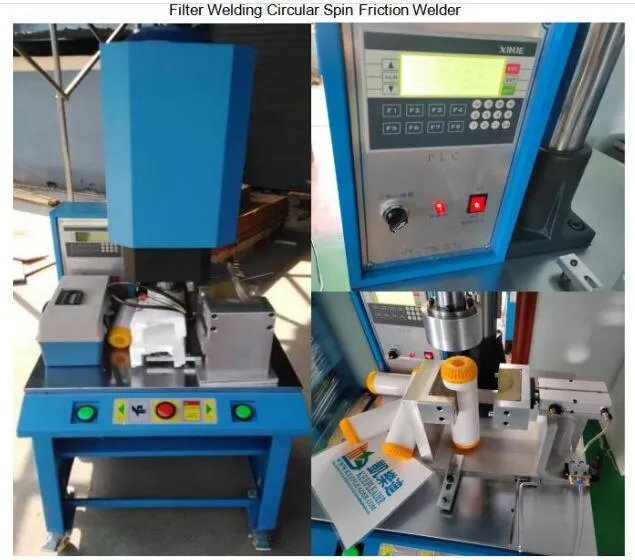

Detailed Photos & Machine Uses

Frequently Asked Questions

What materials are compatible with spin welding?
Spin welding can join most thermoplastics, including ABS, PVC, PP, PE, and glass-filled nylon. It is also effective for joining some dissimilar materials like polyethylene to polypropylene.
Must the parts be completely round?
The joint interface itself must be circular for the rotation to work, but the overall shape of the parts can be non-circular or contoured.
What are the key parameters to control during the process?
The main parameters are rotation speed (RPM), weld force, welding time, and displacement (collapse distance).
What is the advantage of a shear joint?
Shear joints provide the best weld strength, highest performance, and require the least amount of torque. They can also be designed with flash traps to hide excess plastic.
Can spin welding achieve a hermetic seal?
Yes, spin welding is ideal for creating pressure-resistant, hermetically sealed joints, often capable of holding pressures up to 100psi.
How does it handle flash (molten material)?
Spin welding moves more material than other methods. Engineers design joints (like tongue and groove) to capture or hide the flash for a cleaner cosmetic appearance.
