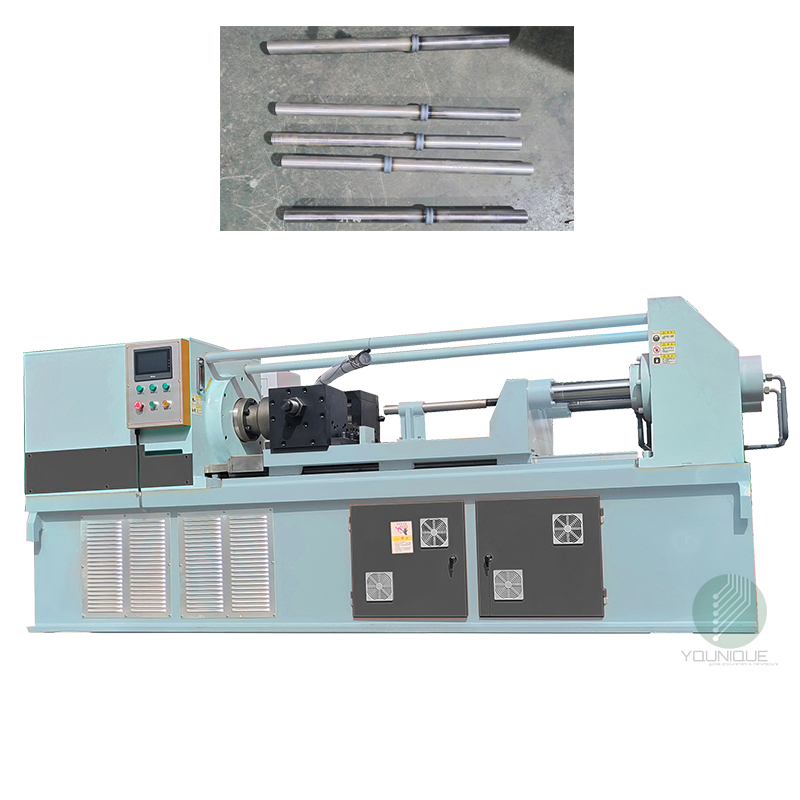

China Manufacturing Machinery Pump Shaft/Stainless Steel +45 Steel Hydraulic Friction Welding Machine
China Manufacturing Machinery Pump Shaft/Stainless Steel +45 Steel Hydraulic Friction Welding Machine
China Manufacturing Machinery Pump Shaft/Stainless Steel +45 Steel Hydraulic Friction Welding Machine
China Manufacturing Machinery Pump Shaft/Stainless Steel +45 Steel Hydraulic Friction Welding Machine
China Manufacturing Machinery Pump Shaft/Stainless Steel +45 Steel Hydraulic Friction Welding Machine
1 / 5
China Manufacturing Machinery Pump Shaft/Stainless Steel +45 Steel Hydraulic Friction Welding Machine
China Manufacturing Machinery Pump Shaft/Stainless Steel +45 Steel Hydraulic Friction Welding Machine
China Manufacturing Machinery Pump Shaft/Stainless Steel +45 Steel Hydraulic Friction Welding Machine
China Manufacturing Machinery Pump Shaft/Stainless Steel +45 Steel Hydraulic Friction Welding Machine
China Manufacturing Machinery Pump Shaft/Stainless Steel +45 Steel Hydraulic Friction Welding Machine

China Manufacturing Machinery Pump Shaft/Stainless Steel +45 Steel Hydraulic Friction Welding Machine

Customization: Available
Cooling Way: Air Cooling
Control: Automatic
Send Inquiry

Product Description

Basic Information
Model NO.
YE-C20
Style
Horizontal Type
Frequency Range
High Frequency
Electric Current
AC
Type
Inertia Friction Welder
Control Type
PLC Control
Touch Screen
Color LCD Touch Screen
Input System
Intelligent Digital Input System
Package Size
180.00cm * 120.00cm * 150.00cm
Gross Weight
10000.000kg
Product Description

Continuous drive friction welder (hydraulic digital type)

Our friction welding machine is engineered for high-precision joining of metal components through controlled mechanical friction.

Key Structural Features
  • Machine Base: High strength steel plate with annealing treatment for maximum durability and welding accuracy.
  • Spindle System: Uniquely designed bearings to withstand high-speed rotation and high thrust.
  • Sliding Table: Utilizes Taiwan Shangyin heavy linear guide rails to minimize sliding resistance.
  • Drive System: Servo motor driven with frequency conversion control for arbitrary speed settings.
  • Position Detection: High-precision magnetic scale (electronic ruler) for maintenance-free numerical input control.

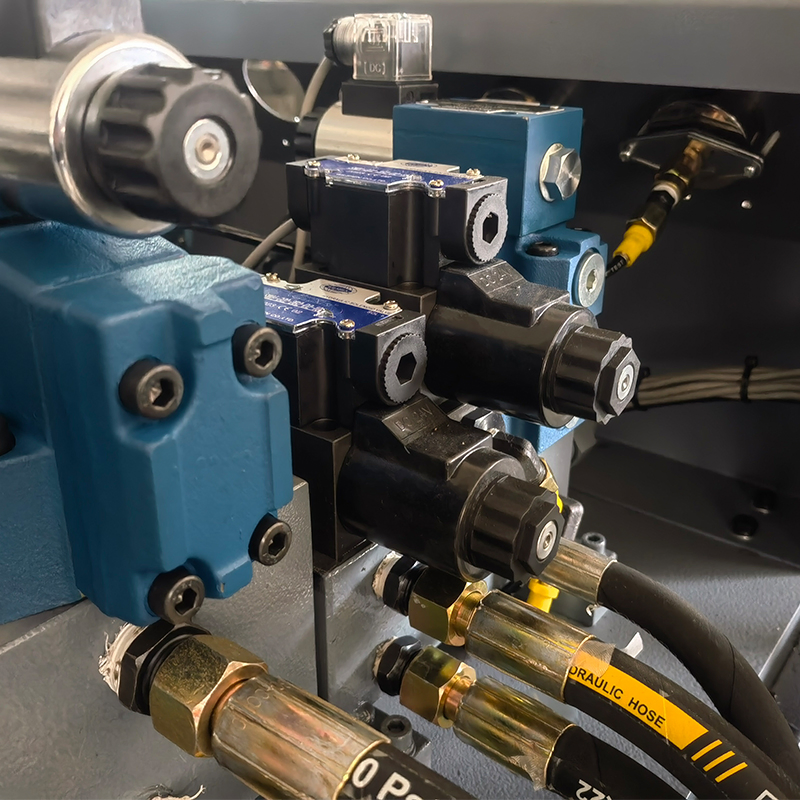

  • Hydraulic Control: Proportional valve control with closed-loop system ensures stable thrust and joint quality.
  • PLC Control: Integrated Omron PLC controller for superior process stability.
Model Max Forging Force (kN) Max Spindle Speed (RPM) Weld Diameter (Carbon Steel) Rotary Fixture Length (mm) Move Fixture Length (mm) Max Travel (mm) Gross Power (kW) Weight (tons)
YE-C2.5255000φ5-φ1225-26050-450300102
YE-C5504000Φ8-φ2025-26050-450300172.5
YE-C101003500Φ10-φ2625-26050-450300304
YE-C202003000Φ12-φ4025-260100-500300456.5
YE-C323202000Φ18-φ5030-260100-500300737
YE-C606001500Φ30-φ6530-260100-5003001108.5
YE-C808001500Φ40-φ8030-260100-6003001509.6
YE-C10010001500Φ50-φ9030-260100-6003002309.8
Visual Display & Applications

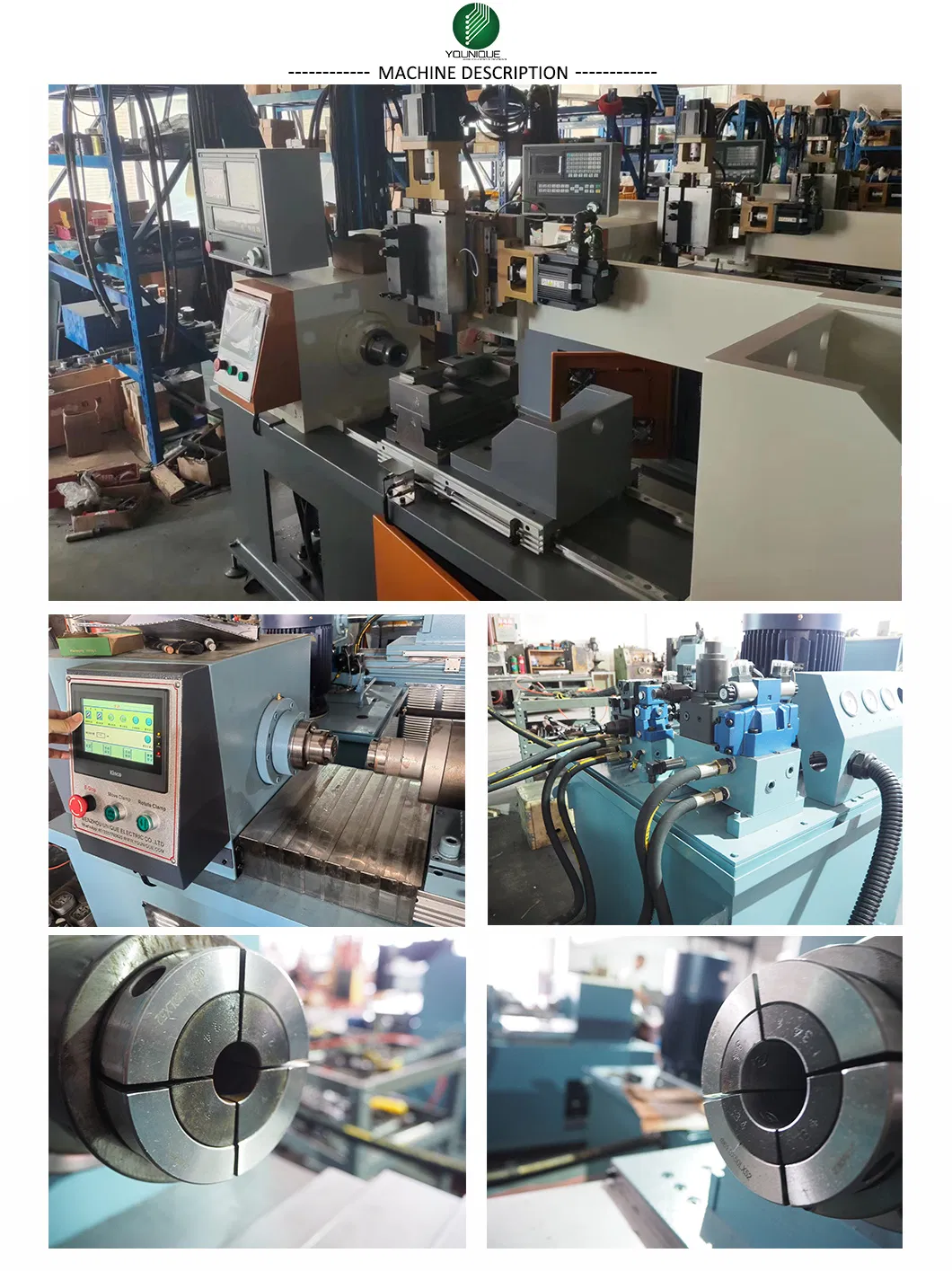

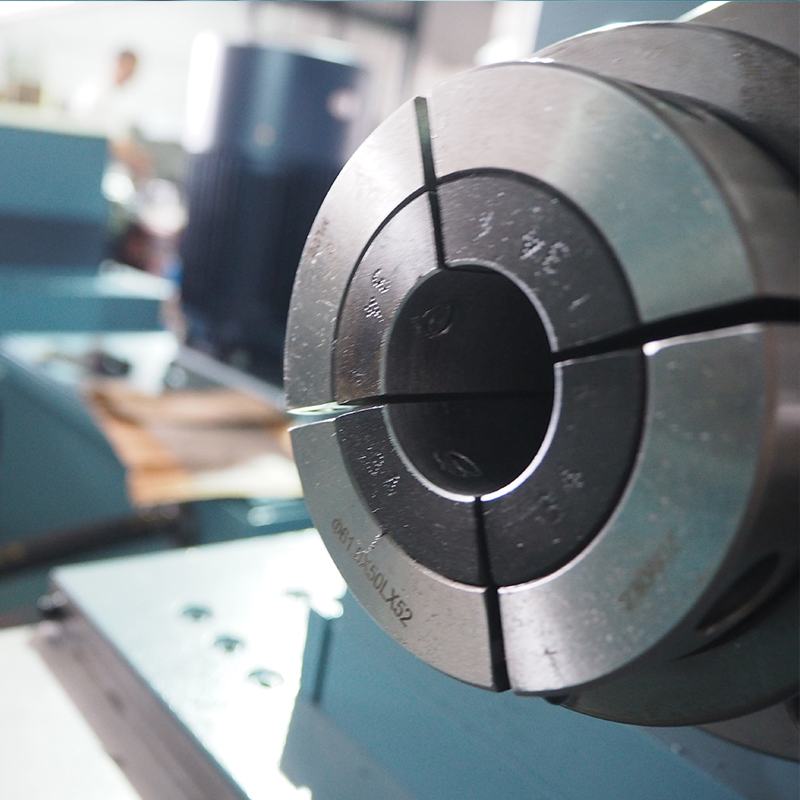

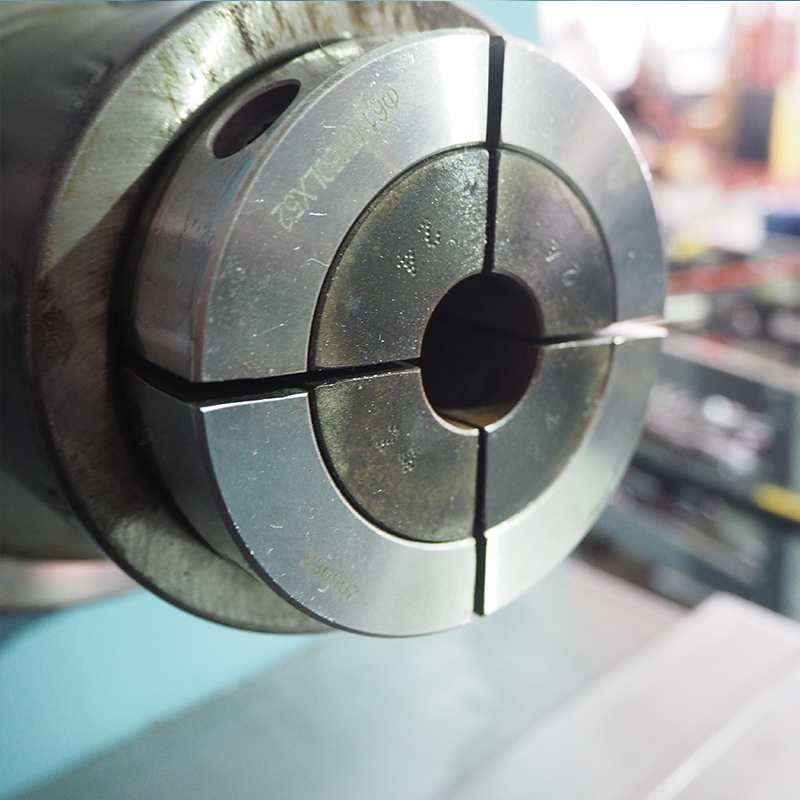

Friction Welding Machine Detail

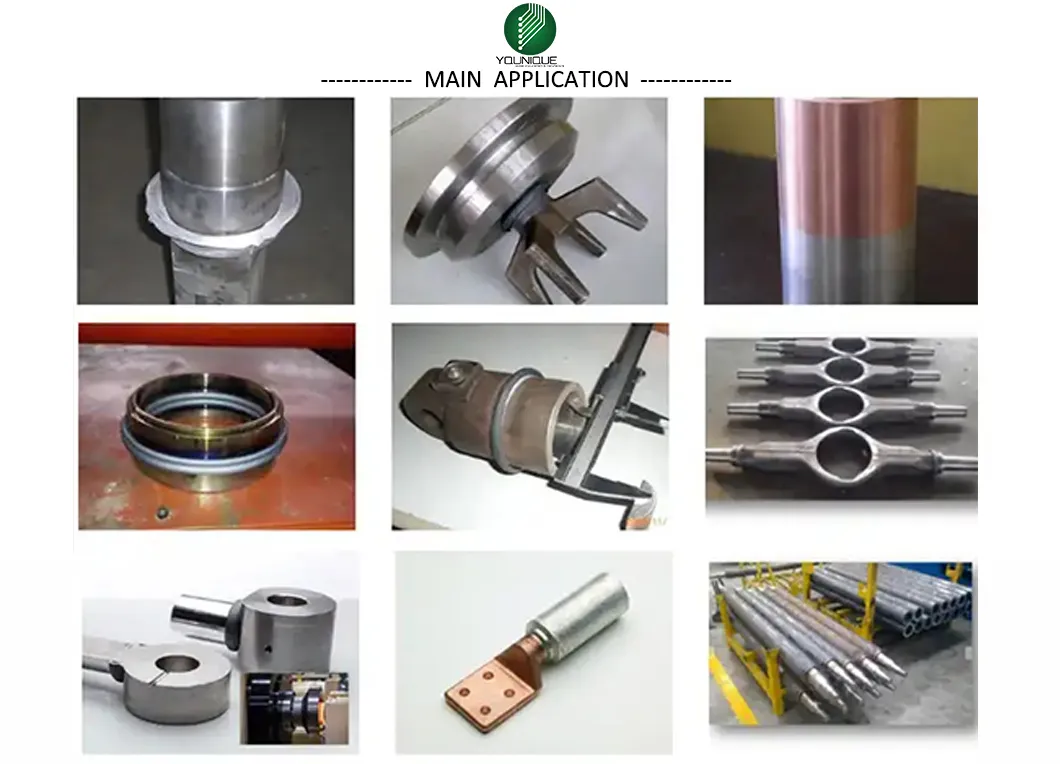

Main Application

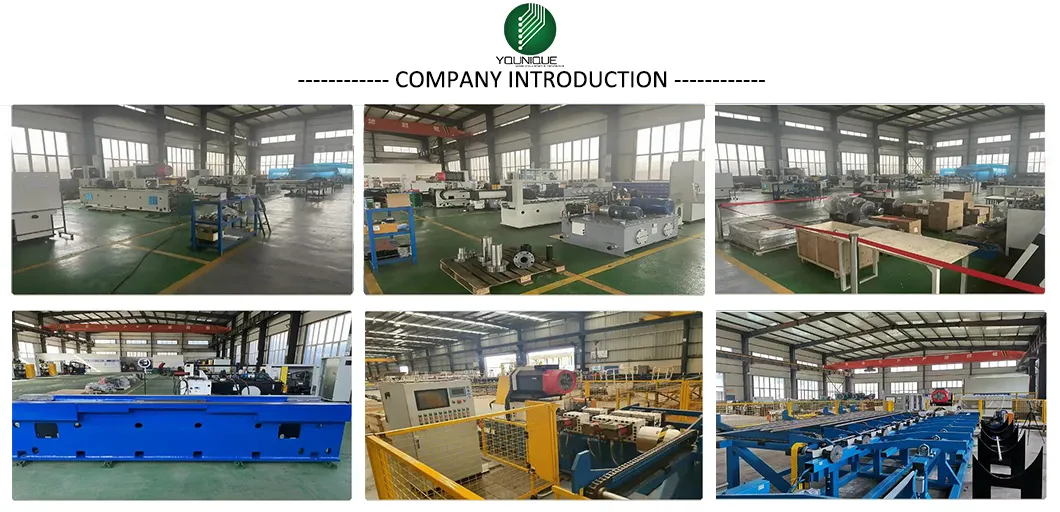

Production Line
Certifications
Packaging and Shipping

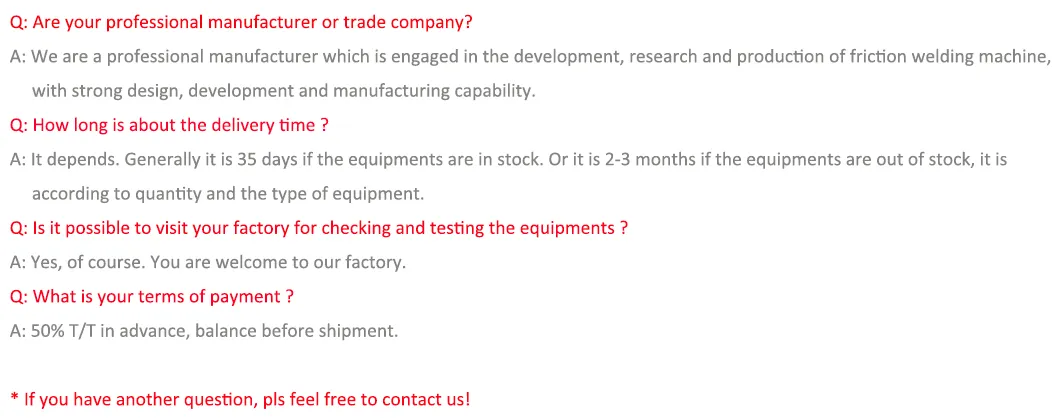

FAQ Overview
Frequently Asked Questions
What materials can be welded using this friction welding machine?
This machine is ideal for carbon steel, stainless steel, alloy steel, and even dissimilar metal combinations like copper to aluminum or stainless steel to carbon steel.
How does the PLC control system benefit the welding process?
The Omron PLC system ensures precise control over welding parameters such as rotation speed, friction time, and forging pressure, resulting in consistent, high-quality joints with minimal human error.
Is the machine suitable for high-volume production?
Yes, with a production capacity of up to 1000 sets per year and a robust servo-driven system, the machine is designed for continuous industrial operation and high-efficiency production lines.
What kind of maintenance does the electronic ruler require?
The high-precision magnetic scale used for position detection is a non-contact system, meaning it suffers no mechanical wear and requires virtually no maintenance over its lifespan.
Can the spindle speed be adjusted for different workpieces?
Absolutely. The spindle is driven by a servo motor with frequency conversion control, allowing you to set the optimal RPM for various diameters and material types via the touch screen.
How is the equipment protected during international shipping?
All machines are securely packed in heavy-duty wooden cases to prevent damage from moisture and mechanical impact during sea or land transport.
