China Manufacturing Machinery Hydraulic Type High Efficiency Rotary Spin Drill Pipe Friction Welding Weld Machine
China Manufacturing Machinery Hydraulic Type High Efficiency Rotary Spin Drill Pipe Friction Welding Weld Machine
China Manufacturing Machinery Hydraulic Type High Efficiency Rotary Spin Drill Pipe Friction Welding Weld Machine
China Manufacturing Machinery Hydraulic Type High Efficiency Rotary Spin Drill Pipe Friction Welding Weld Machine
China Manufacturing Machinery Hydraulic Type High Efficiency Rotary Spin Drill Pipe Friction Welding Weld Machine
1 / 5
China Manufacturing Machinery Hydraulic Type High Efficiency Rotary Spin Drill Pipe Friction Welding Weld Machine
China Manufacturing Machinery Hydraulic Type High Efficiency Rotary Spin Drill Pipe Friction Welding Weld Machine
China Manufacturing Machinery Hydraulic Type High Efficiency Rotary Spin Drill Pipe Friction Welding Weld Machine
China Manufacturing Machinery Hydraulic Type High Efficiency Rotary Spin Drill Pipe Friction Welding Weld Machine
China Manufacturing Machinery Hydraulic Type High Efficiency Rotary Spin Drill Pipe Friction Welding Weld Machine

China Manufacturing Machinery Hydraulic Type High Efficiency Rotary Spin Drill Pipe Friction Welding Weld Machine

Customization: Available
Cooling Way: Air Cooling
Control: Automatic
Send Inquiry

Product Description

Basic Specifications

Model NO.YE-C20
StyleHorizontal Type
Frequency RangeHigh Frequency
Electric CurrentAC
TypeInertia Friction Welder
Control TypePLC Control
Touch ScreenColor LCD Touch Screen
Input SystemIntelligent Digital Input
Production Capacity1000 Set/Year
HS Code851531990

Packaging & Delivery

Package Size180.00cm * 120.00cm * 180.00cm
Package Gross Weight10000.000kg
Transport PackageWooden Case

Continuous Drive Friction Welder

Servo Numerical Control Type

1
Machine Base: High strength steel plate with annealing treatment for high thrust resistance and welding accuracy.
2
Spindle: Unique bearing design for high-speed rotation and high thrust durability. Cast iron spindle body.
3
Sliding Table: Heavy linear guide rail to minimize sliding resistance.
4
Spindle Drive: Servo motor driven with strong belt transmission; speed set via frequency conversion.
5
Position Detection: High-precision magnetic scale (electronic ruler) for numerical input setting.
6

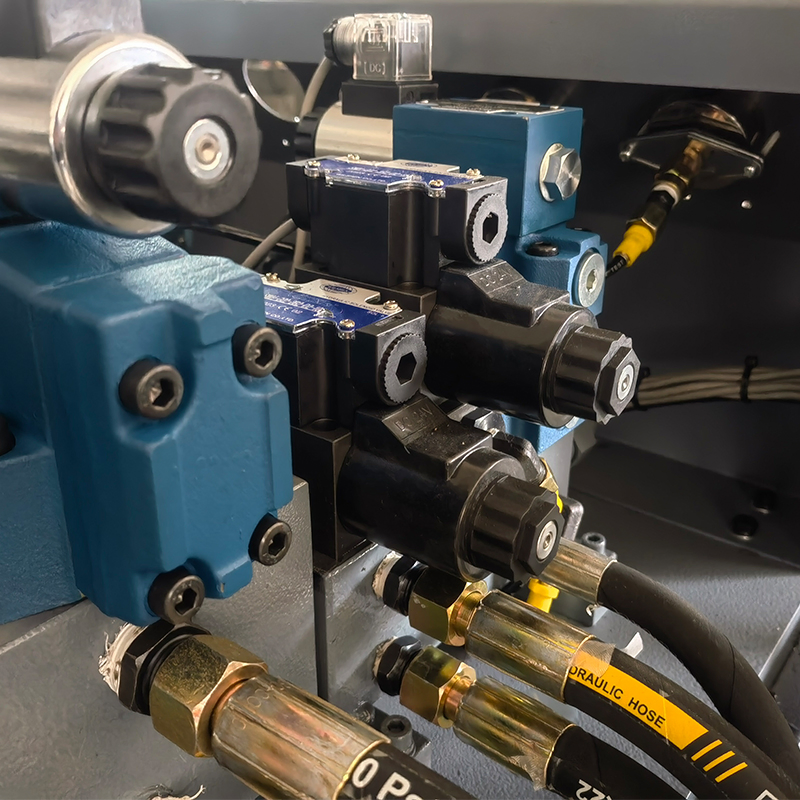

Oil Pressure Control: Proportional valve control with closed-loop hydraulic system for stable thrust.
7

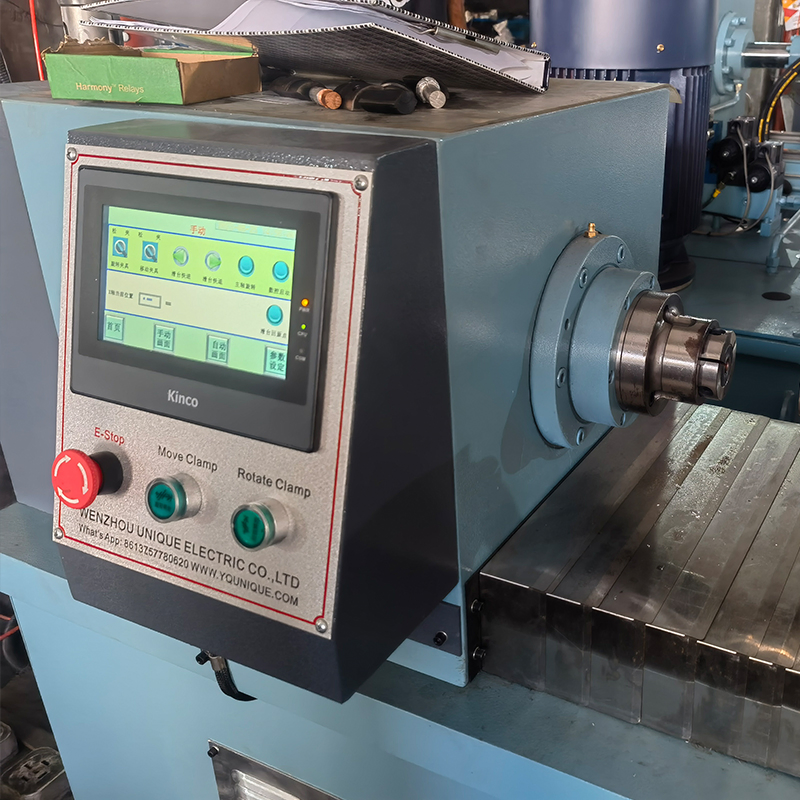

Microcomputer Control: Omron PLC controller ensures product welding stability.

Technical Specification Sheet

Model Max Forging Force (kN) Max Spindle Speed (RPM) Weld Diameter (mm) Rotary Fixture Length (mm) Move Fixture Length (mm) Max Travel (mm) Power (kW) Weight (Tons)
YE-C5 50 4000 Φ5-φ16 25-260 50-450 300 15 2.5
YE-C10 100 3500 Φ5-φ20 25-260 50-450 300 25 4
YE-C20 200 3000 Φ5-φ32 25-260 100-500 300 38 6.5
YE-C32 320 2000 Φ5-φ40 30-260 100-500 300 73 7

Product Display & Applications

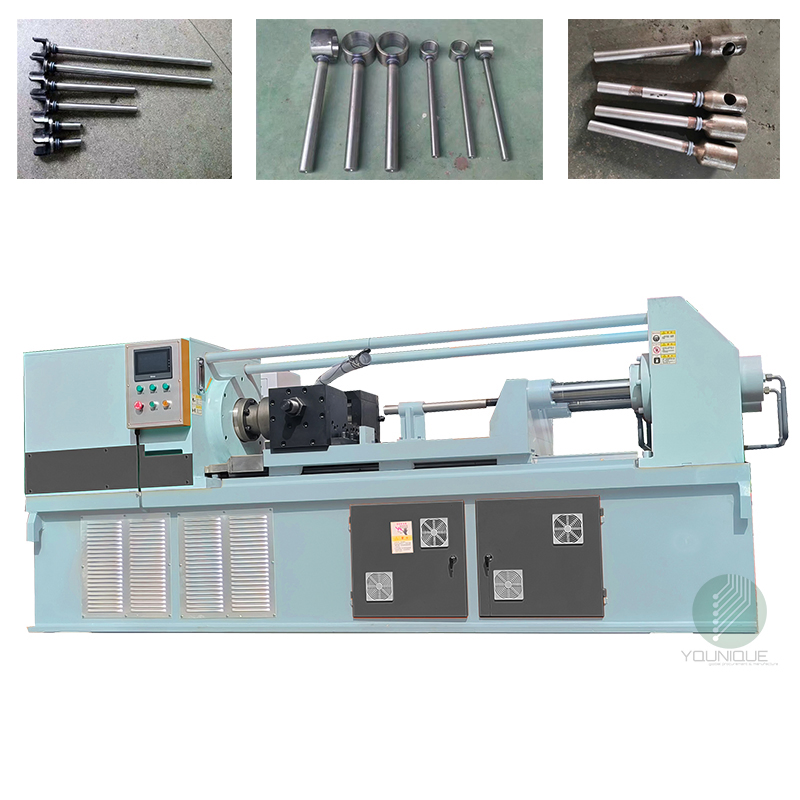

Friction Welding Machine Overview

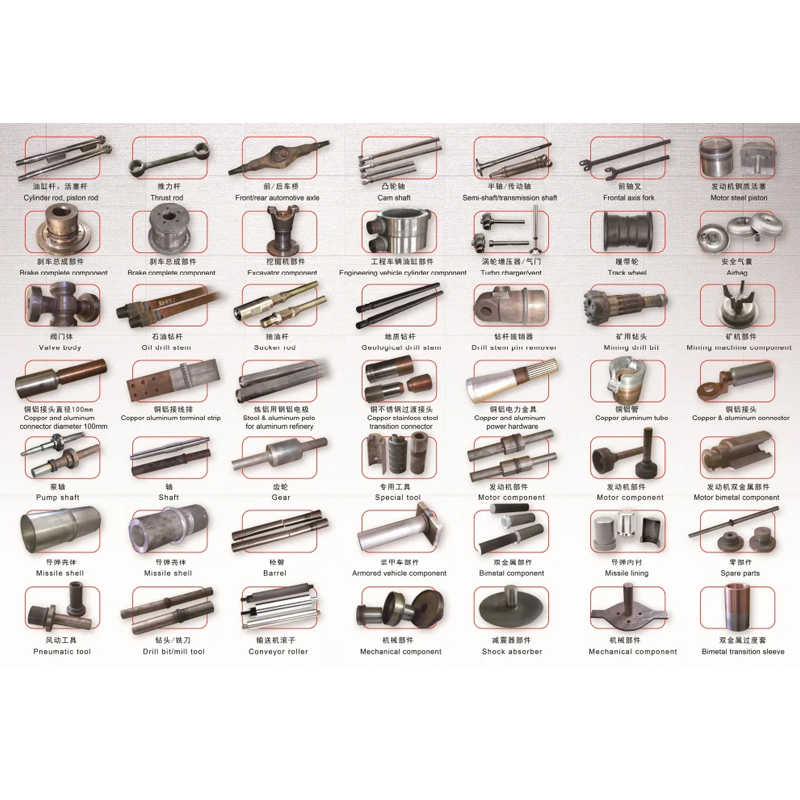

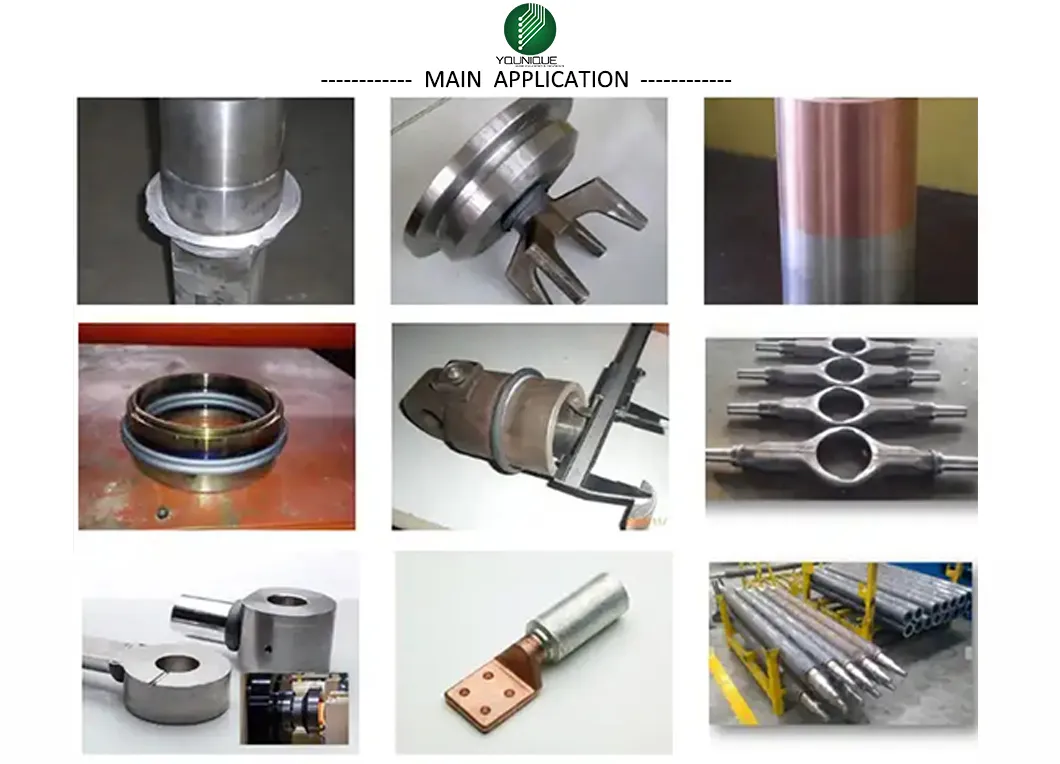

Main Application

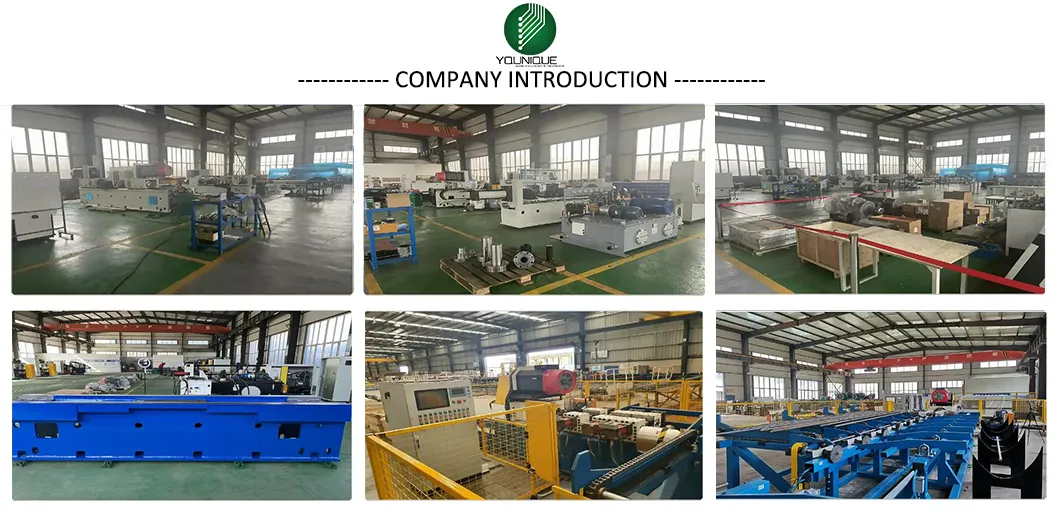

Production Facility
Certifications
Packaging and Shipping

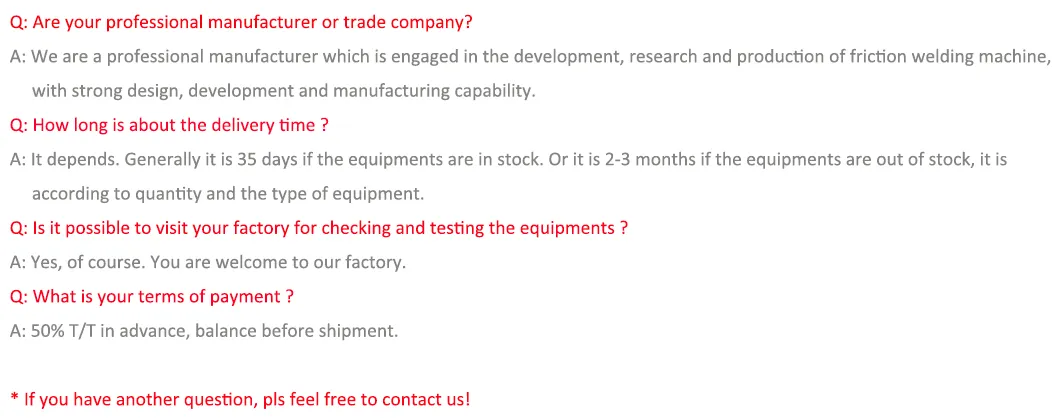

FAQ and Support

Frequently Asked Questions

What is the main advantage of a Continuous Drive Friction Welder?
It provides high welding accuracy and joint quality through precise control of the spindle speed and forging force, making it ideal for medium carbon steel and various industrial components.
How does the PLC control system benefit the welding process?
The Omron PLC controller ensures high stability and repeatability of the welding parameters, allowing for consistent results across large production batches.
Can the spindle speed be adjusted for different materials?
Yes, the spindle is driven by a servo motor and controlled via frequency conversion, allowing the speed to be set arbitrarily based on the specific requirements of the material and weld diameter.
What kind of maintenance does the position detection system require?
The machine uses a high-precision magnetic scale (electronic ruler) which is a non-standard contact ruler, meaning it requires virtually no maintenance while providing high precision.
What materials are suitable for this friction welding machine?
This machine is specifically designed for high-efficiency welding of materials like medium carbon steel, with weld diameters ranging from Φ5mm to Φ40mm depending on the model.
How is the machine protected during international shipping?
The machine is securely packed in a robust wooden case to withstand the rigors of transport, ensuring it arrives at your facility in perfect condition.
